Ash Tray: Service and Repair

REMOVAL PROCEDURE

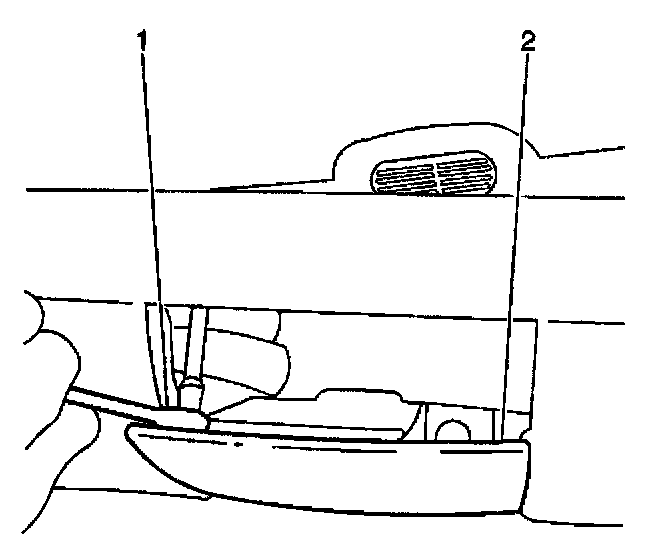

1. Open the IP ashtray (2).
2. Remove the 4 fasteners from the inside of the IP ashtray (2).
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connectors.
2. Install the IP ashtray (2) to the lower IP.
3. Install the 4 fasteners.
