Driver/Vehicle Information Display: Service and Repair

Driver Information Center Switch Replacement




REMOVAL PROCEDURE
1. Remove the IP cluster trim plate.
2. Disconnect the electrical connector.
3. Remove the fasteners (2) from the driver information switch.
4. Remove the driver information switch.

INSTALLATION PROCEDURE

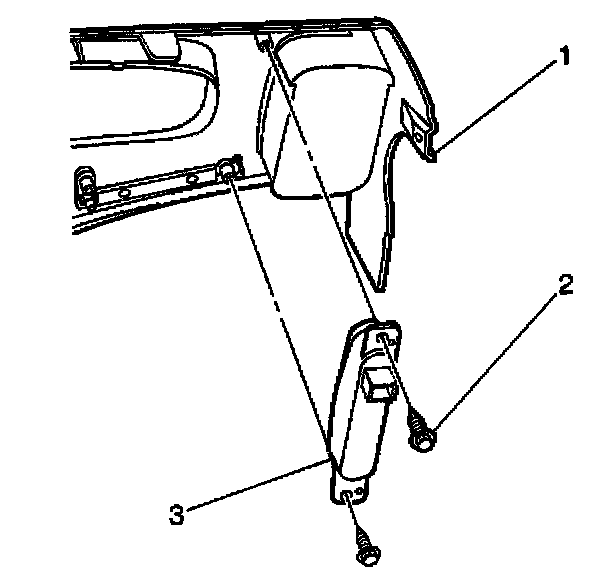

1. Install the driver information switch (3) to the IP cluster trim plate (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners (2) to the drivers information switch.

Tighten
Tighten the fasteners to 2 N.m (18 lb in).

3. Connect the electrical connector.
4. Install the IP cluster trim plate.
