Engine Flywheel Replacement

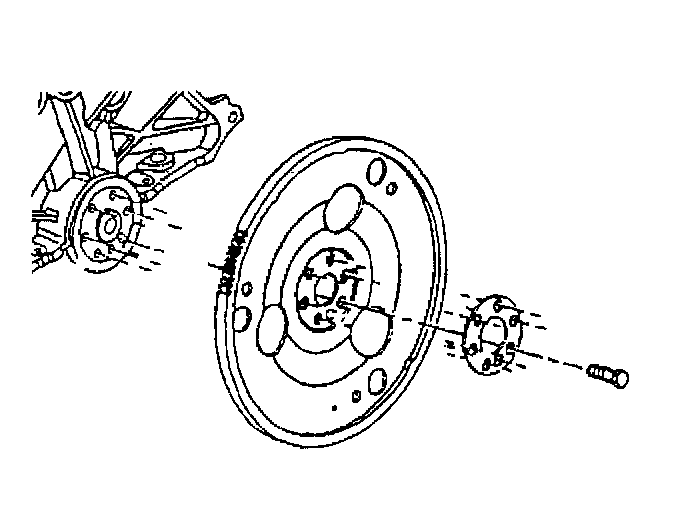

Removal Procedure





1. Remove the automatic transaxle.
2. Remove the engine flywheel bolts.
3. Remove the engine flywheel retainer.
4. Remove the engine flywheel.
5. Clean the engine flywheel bolt threads and bolt holes.

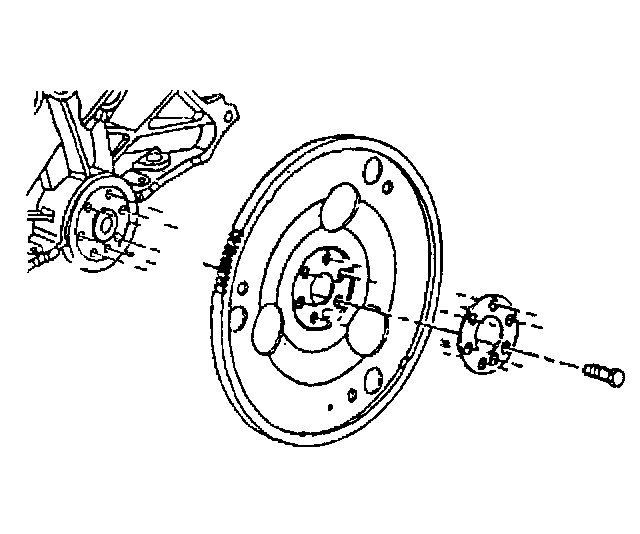

Installation Procedure





1. Install the engine flywheel.
2. Install the engine flywheel retainer.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the engine flywheel bolts.
Tighten the engine flywheel bolts to 71 Nm (52 ft. lbs.).
4. Install the automatic transaxle.
