Class 2, Entertainment and Comfort Serial Data Link

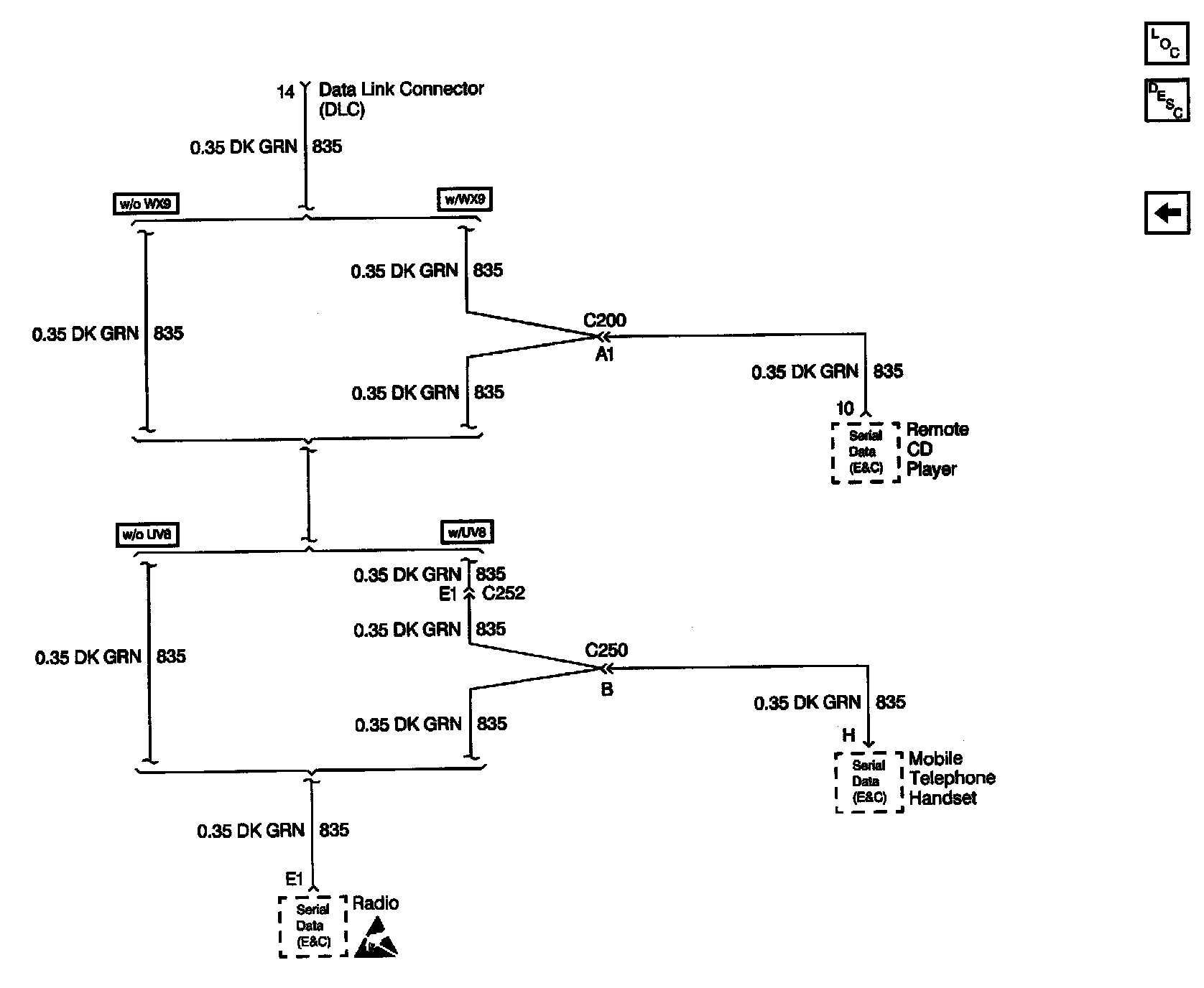

Data Link Connector (DLC) Schematics: Entertainment And Comfort Serial Data Link:
