Brake Caliper Bracket Replacement - Front

REMOVAL PROCEDURE

IMPORTANT: Do not disconnect the brake hose from the caliper. Support or hang the caliper. Do not let the caliper hang from the brake hose.





1. Remove the caliper.

CAUTION: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.

IMPORTANT: The NEW brake caliper bolts come with an encapsulated thread compound already on the bolt.

2. Remove the caliper bracket bolts (2).
3. Remove the caliper bracket (1).

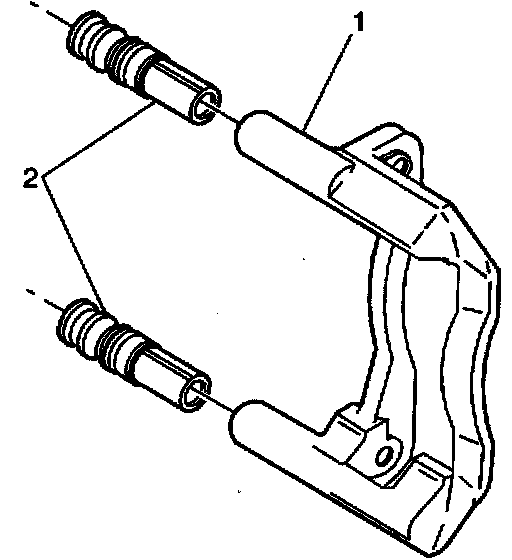

4. Remove the following components from the bracket (1):
^ The boot bolts (2)
^ The bushings

5. Inspect the bracket (1) for cracks.
6. Replace the bracket (1) if necessary.


INSTALLATION PROCEDURE





1. Lubricate the following components with silicone grease:
2. Install the following components into the caliper bracket (2):
^ The bolt boots (1)
^ The bushings

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the caliper bracket with the bracket bolts.

^ Tighten the caliper bracket bolts to 185 Nm (137 lb ft).

4. Install the caliper.
