BTSI Interlock Solenoid Assembly (Column Shift Only)

BTSI INTERLOCK SOLENOID ASSEMBLY (COLUMN SHIFT ONLY)

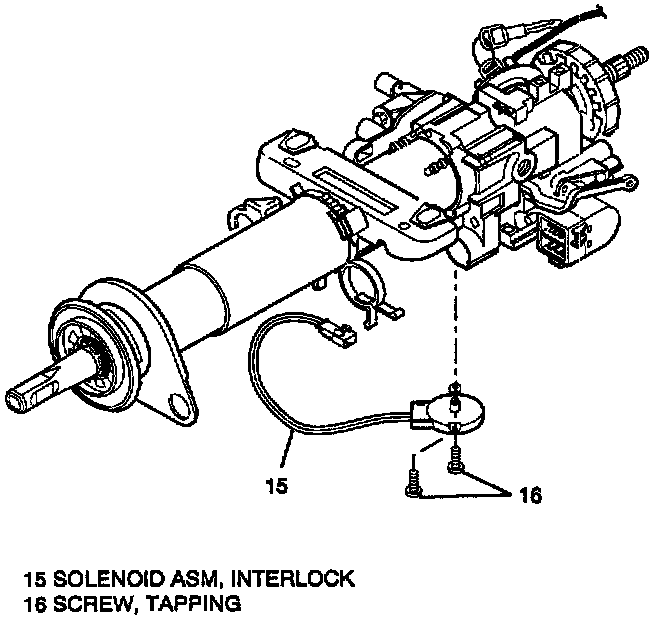

Tilt Steering Column (1 Of 2):

Removing Interlock Solenoid Assembly:

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Disable the SIR system.
3. Two tapping screws (16) from bottom of bearing & housing assembly (11)
4. Interlock solenoid assembly (15) from column.
5. Electrical connector from vehicle wire harness.

INSTALL OR CONNECT
1. Interlock solenoid assembly (15) to column.
2. Two tapping screws (16) to bearing & housing assembly (11).
^ Seat screw (16) on left side of column first.
^ Seat screw (16) on right side of column second.

TIGHTEN
^ Tighten screws (16) in above order to 1.4 Nm (12 lb.in.).

3. Electrical connector to vehicle wire harness.
4. If all service operations are completed, enable the Sir system.
5. Negative (-) battery cable.
