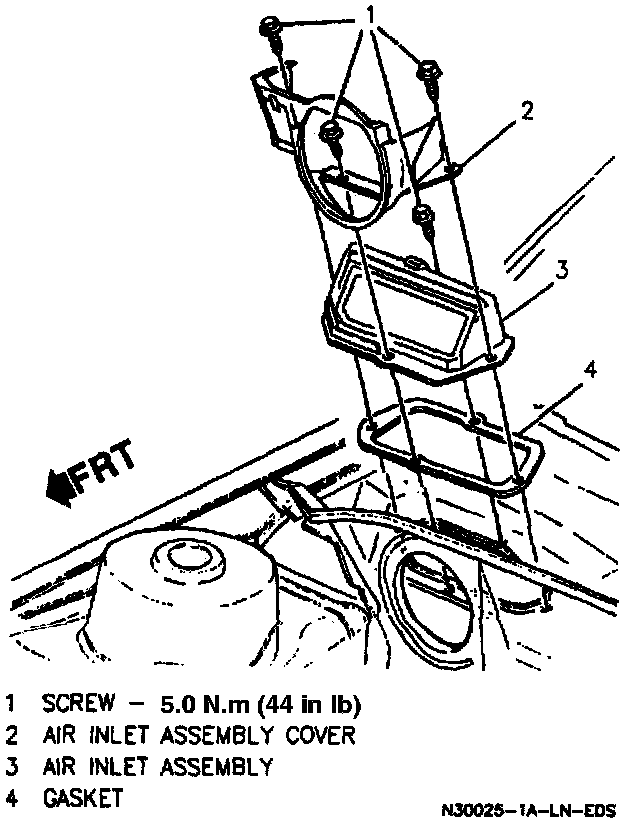

Air Inlet Assembly

Air Inlet Assembly:

Remove or Disconnect

1. Wiper arms.
2. Raise hood.
3. Cowl panel.
4. Air inlet assembly.

Install or Connect

1. Air inlet assembly.
2. Close hood.
3. Cowl panel.
4. Wiper arms - realign to park position.
