Home
>>
Buick
>>
1997
>>
Skylark V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Hazard Warning Switch
Hazard Warning Switch

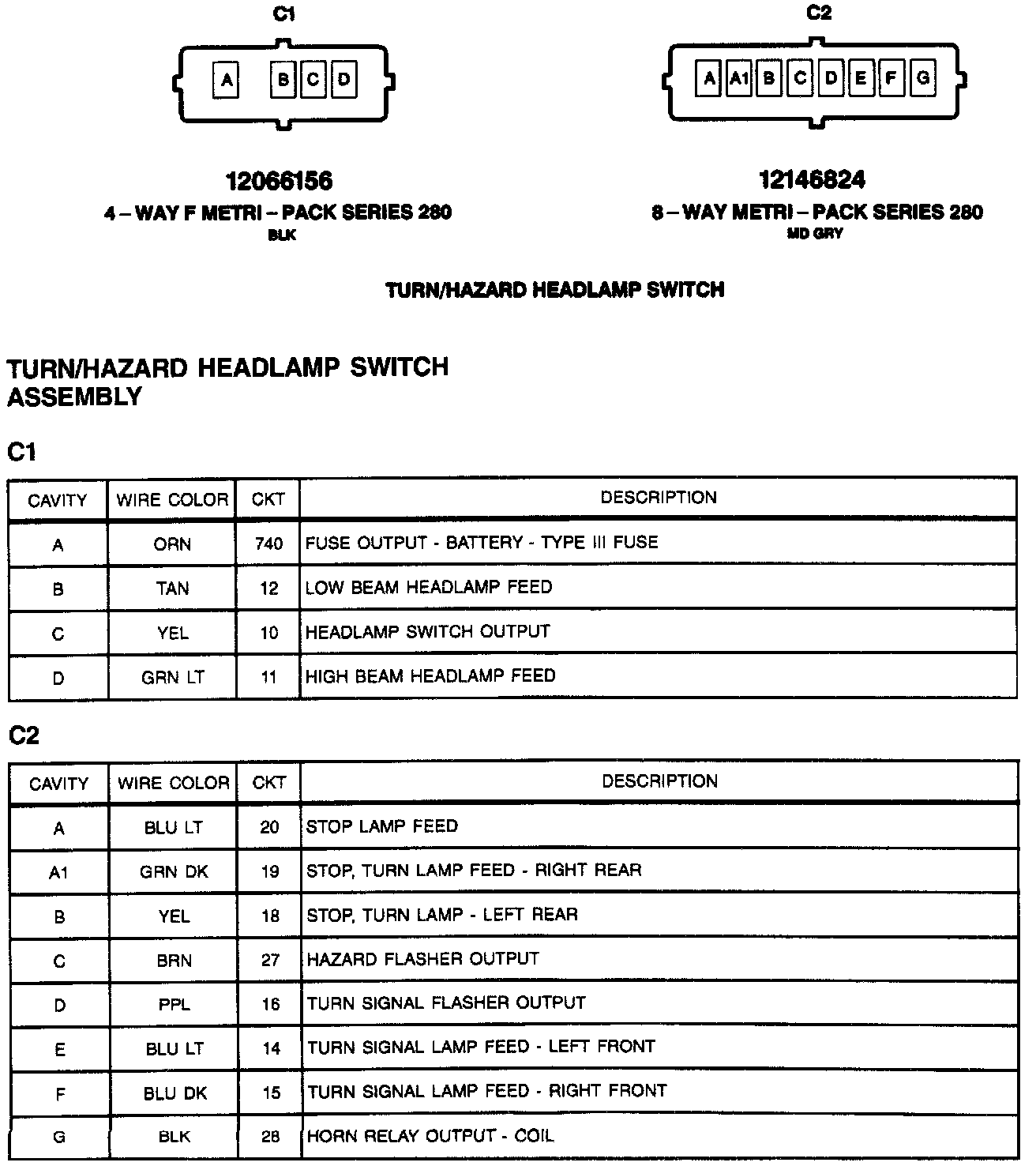

Turn/Hazard Headlamp Switch Assembly C1, C2:
