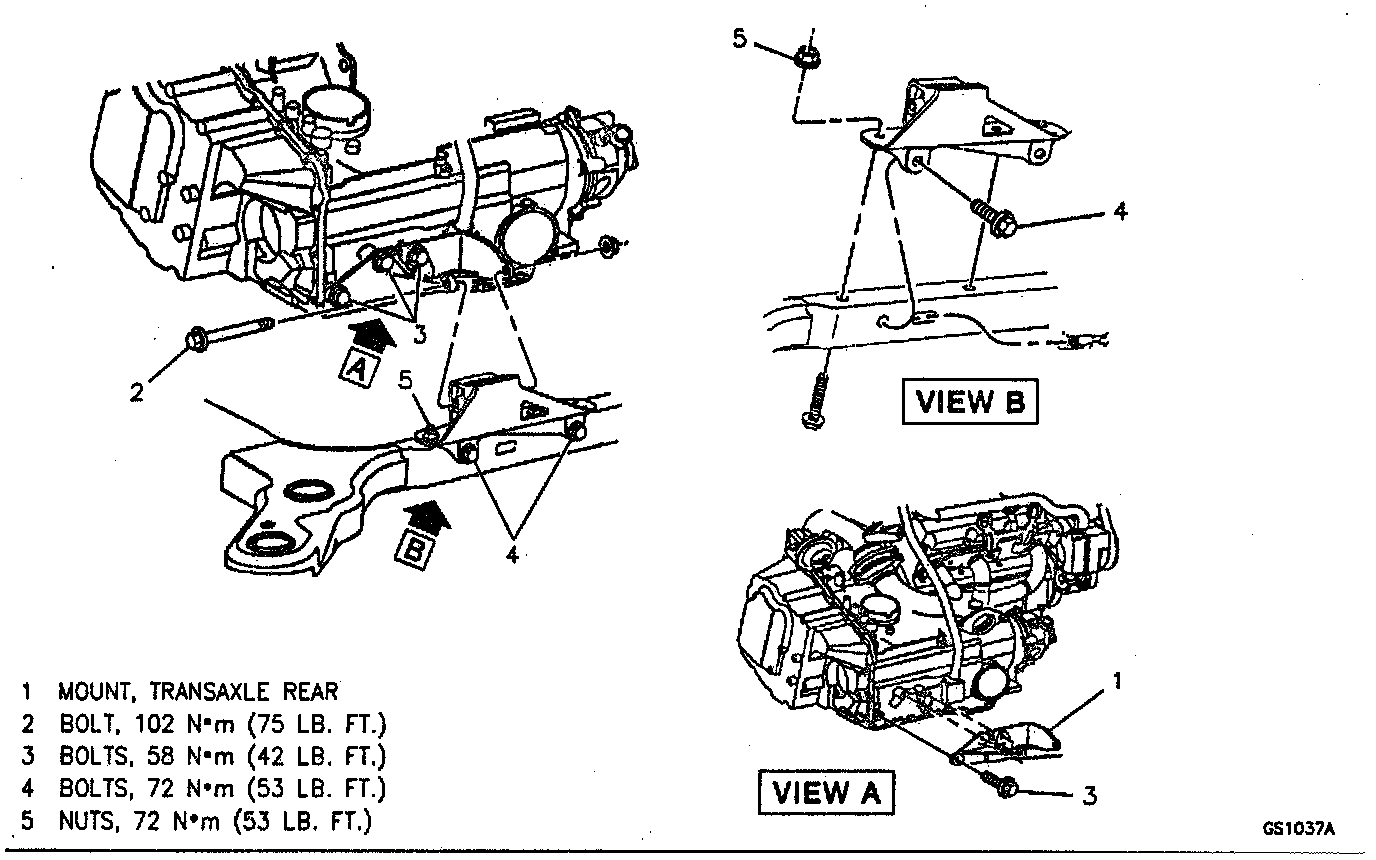

Right Mount

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Support transaxle with jackstand.
3. Nuts and bolts from frame to mount.
4. Through bolt from mount.
5. Bolts from mount to transaxle.
6. Mount.

INSTALL OR CONNECT
1. Mount into position.
2. Bolts, mount to transaxle.
3. Through bolt and nut.
4. Nut and bolts, frame to mount.

Tighten
- Mount to transaxle bolts to 58 N.m (42 lb. ft.).
- Frame to mount nut and bolts to 72 N.m (53 lb. ft.).
- Mount through bolt and nut to 102 N.m (75 lb. ft.).

5. Remove jackstand.
6. Lower vehicle.
