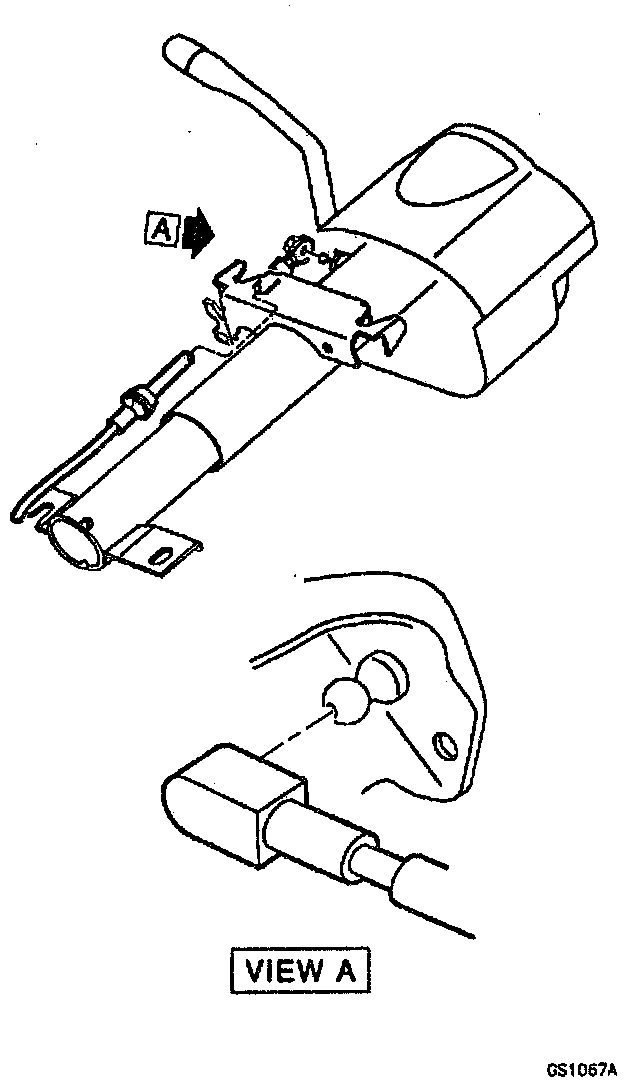

Shift Control Cable - Column Shift

REMOVE OR DISCONNECT
1. Cable from transaxle.
2. Left sound insulator and knee bolster.
3. Cable retaining clip and cable at steering column.
4. Cable assembly through hole in cowl.

INSTALL OR CONNECT
1. Properly route and position cable.
2. Cable at steering column and retaining clip.
3. Left sound insulator and knee bolster.
4. Cable at transaxle.
5. Adjust cable.
