Buick
>>
1997
>>
Riviera V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Audible Warning Circuits
Audible Warning Circuits

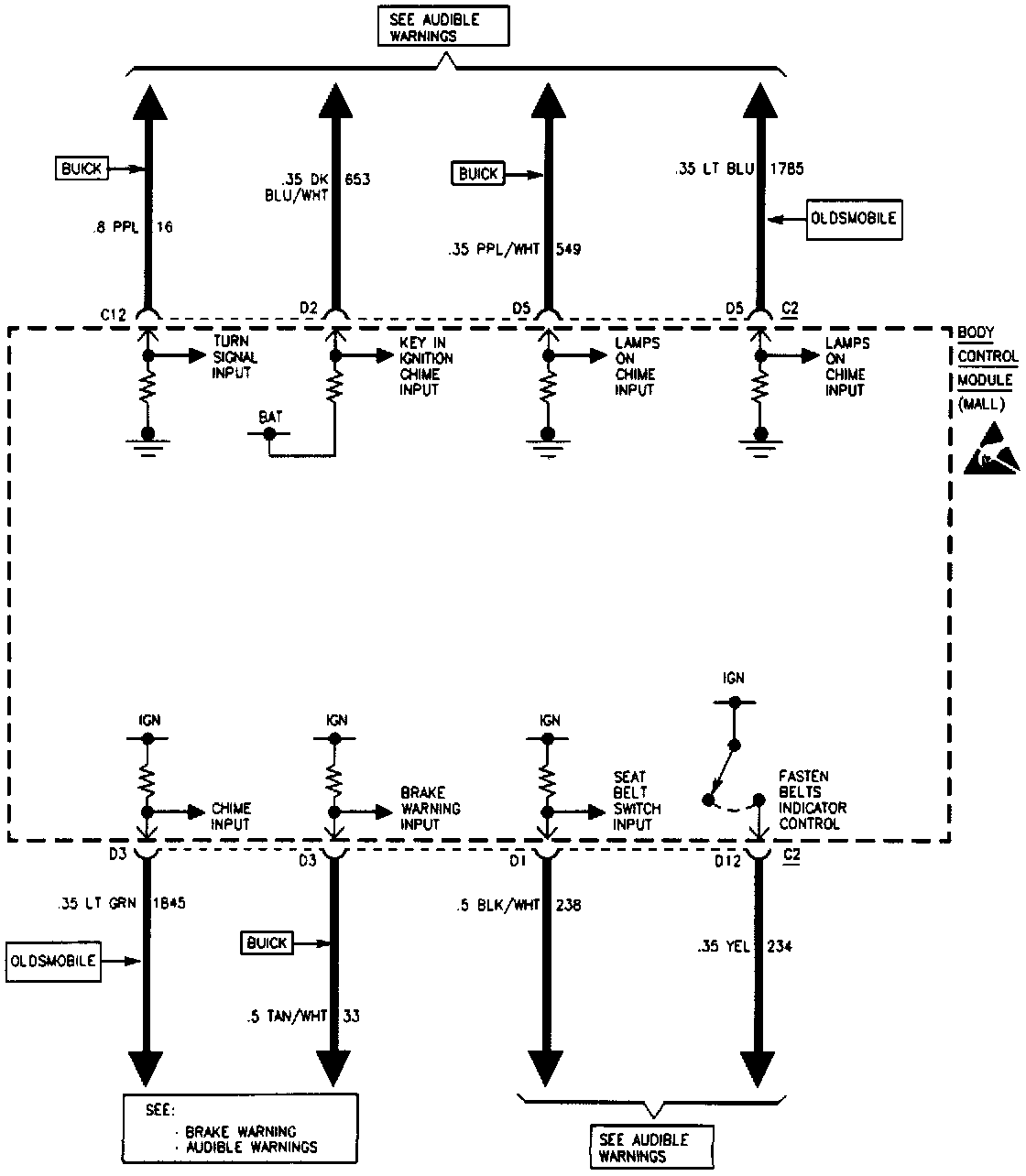

Body Control Module: Audible Warning Circuits:
