Home
>>
Buick
>>
1997
>>
Riviera V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>

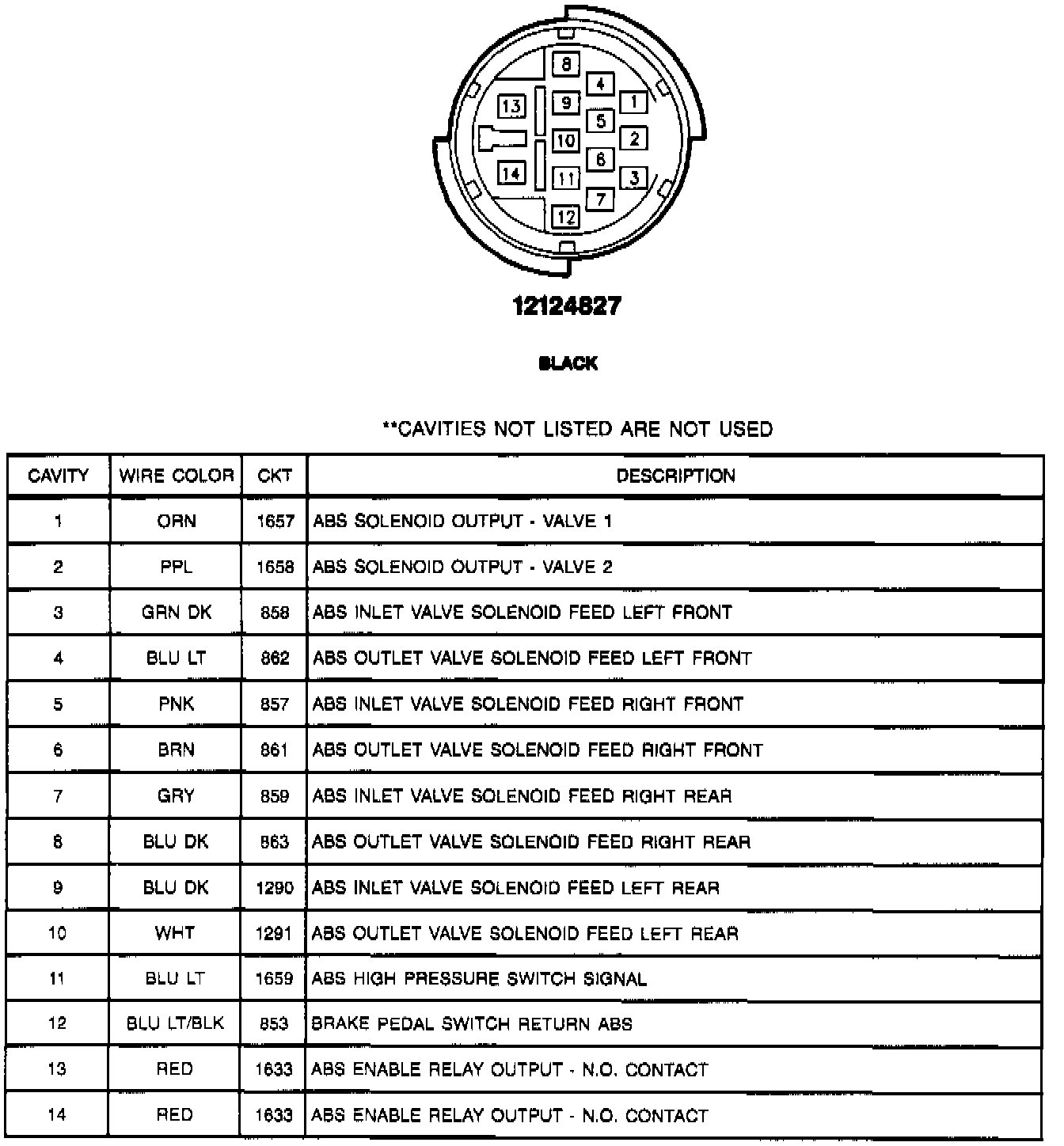

Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

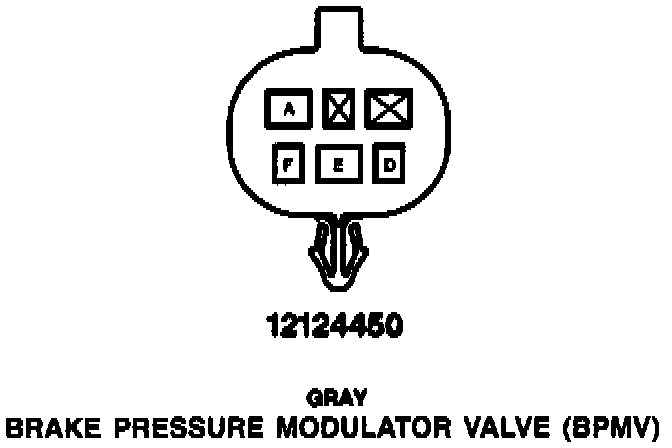

Brake Pressure Modulator Valve (BPMV):
Brake Pressure Modulator Valve (BPMV):
