Inner Washer Solvent Container Replacement

Description:

Remove or Disconnect

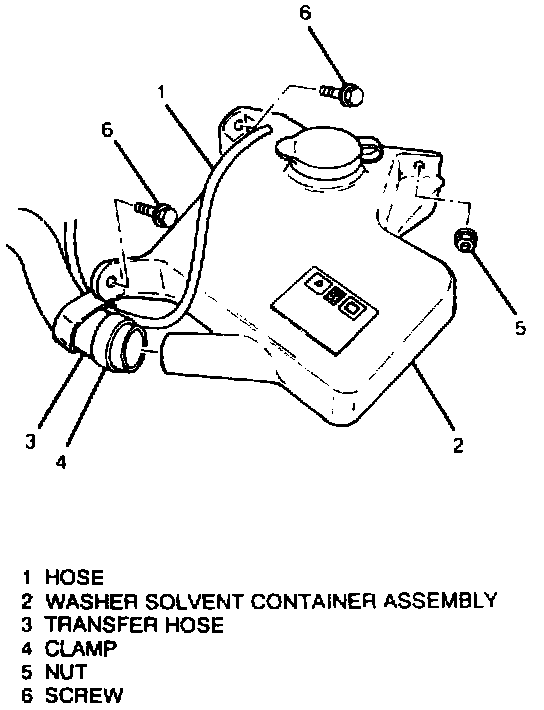

1. Hose (1) from washer solvent container assembly (2).
2. Transfer hose (3) from washer solvent container assembly (2).
A. Slide clamp (4) down transfer hose (3) away from washer solvent container assembly (2).
B. Pull transfer hose (3) from washer solvent container assembly (2).
3. Nut (5) from washer solvent container assembly (2).
4. Two screws (6) and washer solvent container assembly (2) from vehicle.

Install or Connect

NOTICE: Refer to Vehicle Damage Warnings / Fastener Requirements. Service Precautions

- Washer solvent container assembly (2) on vehicle with two screws (6) and one nut (5).
Tighten
^ Two screws to 5 N.m (44 lb. in.).
^ Nut to 5 N.m (44 lb. in.).
2. Transfer hose (3) with clamp (4) on washer solvent container assembly (2).
3. Hose (1) on washer solvent container assembly (2).
