Turn Signal & Multifunction Switch

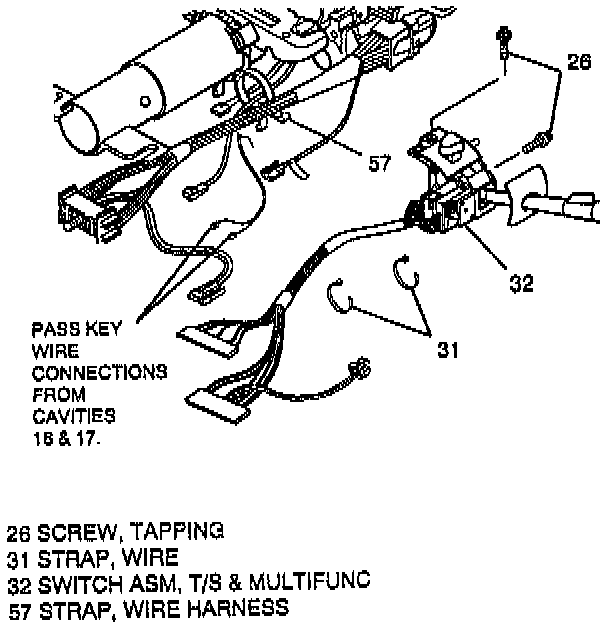

REMOVE OR DISCONNECT
1. Do steps 1 through 5, under "REMOVE OR DISCONNECT", refer to UPPER COVER LOWER COVER.
2. Two wire straps (31) from steering column wire harness.
3. Steering column bulkhead connector from vehicle wire harness.
4. Turn signal & multifunction switch (32) wire harness from wire harness strap (57).
5. Interlock solenoid assembly (29) electrical connector from multifunction switch (32) wire harness.
6. Grey and black connectors of multifunction switch (32) from column bulkhead connector.
7. Pass key wire harness from grey turn signal switch connector.
A. 17-way secondary lock from connector.
B. Two pass key terminals from cavities 16 and 17.
8. Two tapping screws (26).
9. Multifunction switch assembly (32) from column.

INSTALL OR CONNECT

CAUTION: Refer to CAUTION about fasteners. Failure to do may result in component damage or malfunction of steering column.

1. Turn signal & multifunction switch assembly (32) to column.
^ With small blade screwdriver compress electrical contact and move multifunction switch (32) into position.
^ Electrical contact must rest on cancelling cam assembly (7)
2. Two tapping screws (26).
^ Tighten screws (26) to 5.2 Nm (46 lb in).
3. Pass key wire harness to grey turn signal switch connector.
A. Two pass key terminals to cavities 16 and 17 of connector. (cavities optional)
B. 17-way secondary lock to connector.
4. Grey and black connectors of multifunction switch (32) to column bulkhead connector.
5. Interlock solenoid assembly (20) electrical connector to multifunction switch (32) wire harness.
6. Wire harness to wire harness strap (57).
7. Steering column bulkhead connector to vehicle wire harness.
8. Two wire straps (31) to steering column wire harness.
9. Pass key wire to securing position on multifunction switch (32).
10. Do steps 7 through 11, under "INSTALL OR CONNECT", refer to UPPER COVER LOWER COVER.
