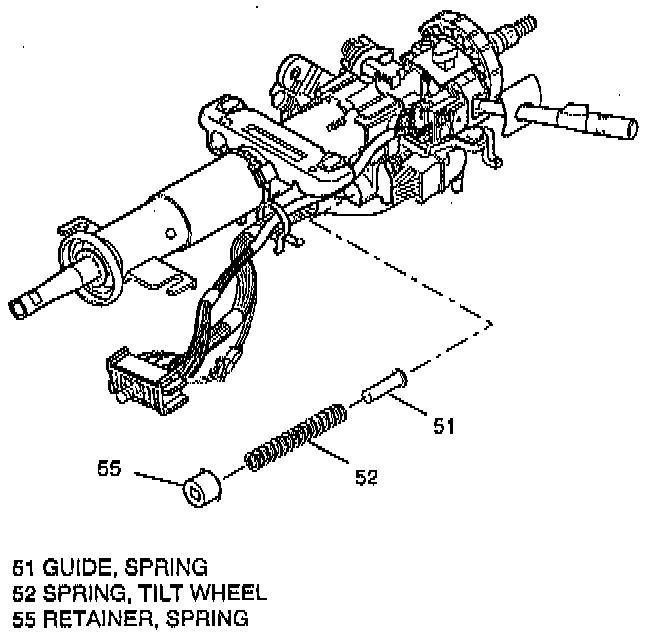

Tilt Wheel Spring

REMOVE OR DISCONNECT
1. Tilt column to "UP" position.
2. Spring retainer (55).
^ Using a cross recess screwdriver, push retainer down and turn counterclockwise to release.
3. Tilt wheel spring (52) and spring guide (51).

INSTALL OR CONNECT

CAUTION: Refer to CAUTION about fasteners. Failure to do may result in component damage or malfunction of steering column.

1. Spring guide (51) to tilt wheel spring (52).
^ Lubricate with lithium grease.
2. Spring retainer (55).
^ Using a cross recess screwdriver push retainer down and turn clockwise to lock in place.
