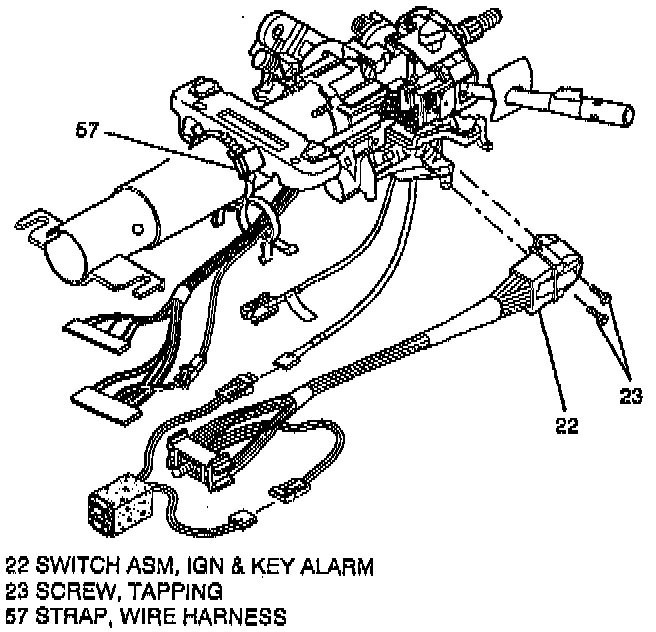

Ignition & Key Alarm Switch

REMOVE OR DISCONNECT
1. Do all steps, under "REMOVE OR DISCONNECT", refer to UPPER COVER LOWER COVER.
2. Two wire straps (31) from steering column wire harness.
3. Steering column bulkhead connector from vehicle wire harness.
4. Ignition & key alarm switch assembly (22) wire harness from wire harness strap (57).
5. Grey and black connectors of turn signal & multifunction switch (32) from column bulkhead connector.
6. Two tapping screws (23).
7. Ignition switch assembly (22).

INSTALL OR CONNECT

CAUTION: Refer to CAUTION about fasteners. Failure to do may result in component damage or malfunction of steering column.

1. Ignition & key alarm switch assembly (22).
2. Two tapping screws (23).
^ Tighten screws (23) to 1.4 Nm (12 lb in).
3. Grey and black connectors of turn signal & multifunction switch (32) to column bulkhead connector.
4. Wire harness to wire harness strap (57).
5. Steering column bulkhead connector to vehicle wire harness.
6. Two wire straps (31) to steering column wire harness.
7. Do all steps, under "INSTALL OR CONNECT", refer to UPPER COVER LOWER COVER.
