Positive Crankcase Ventilation Valve: Service and Repair

REMOVE OR DISCONNECT

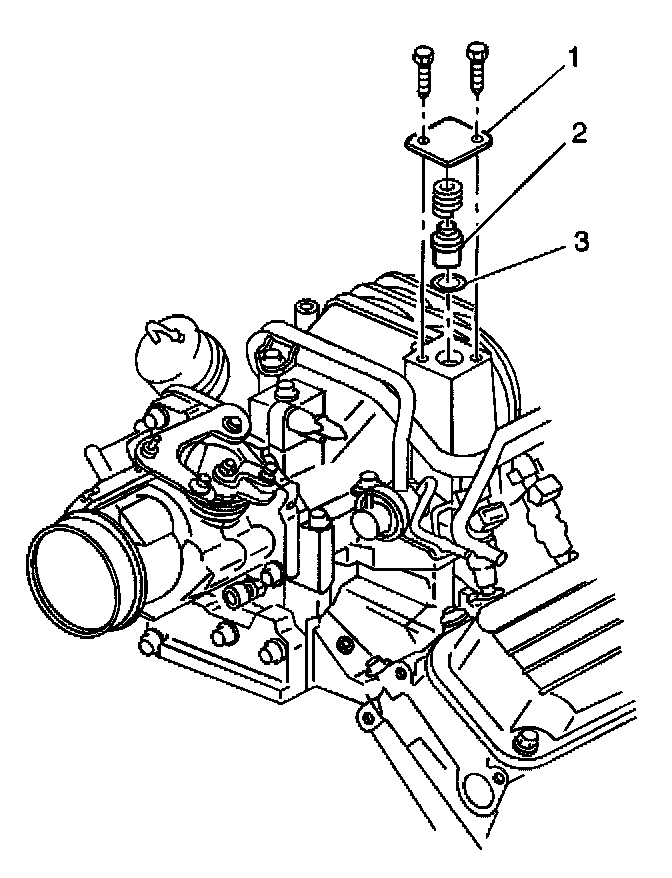

1. While holding down crankcase ventilation valve access cover (1), remove 2 cover retaining bolts.
2. Crankcase ventilation access valve cover (1).
3. Crankcase ventilation valve, spring, and O-ring.

INSTALL OR CONNECT
1. Crankcase ventilation valve, spring, and O-ring.
2. Crankcase ventilation valve cover.
3. While holding down crankcase ventilation valve cover, replace 2 cover retaining bolts.
