Fuses
>>
Turn LP Fuse, Flat Pack MTR Fuse, Perimeter LP Fuse, ABS Fuse
Turn LP Fuse, Flat Pack MTR Fuse, Perimeter LP Fuse, ABS Fuse

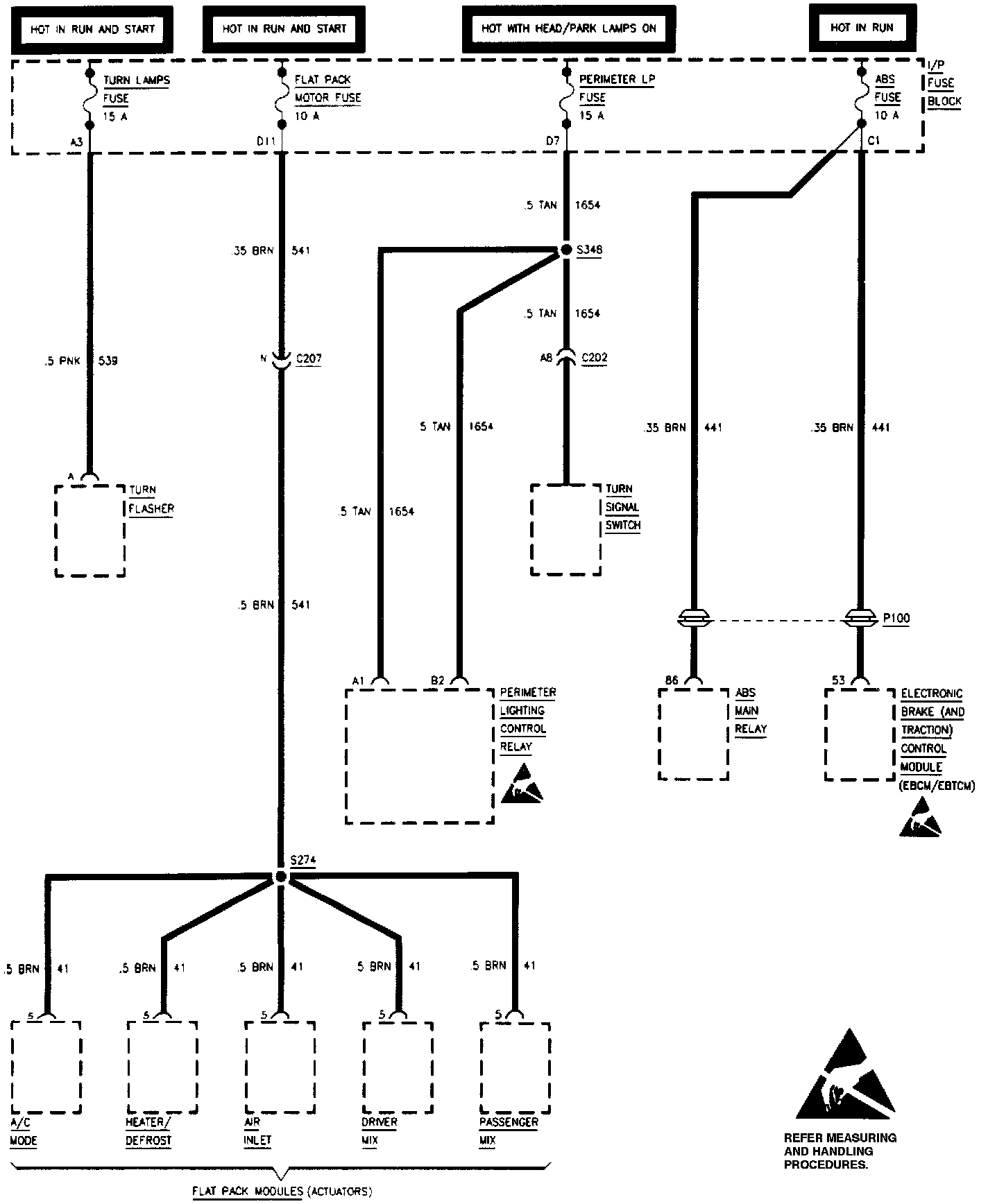

Turn LP Fuse (15 A), Flat Pack MTR Fuse, Perimeter LP Fuse (15 A) And ABS Fuse (10 A):
