Home >> Buick >> 1997 >> Riviera V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> RH PRK LP Fuse

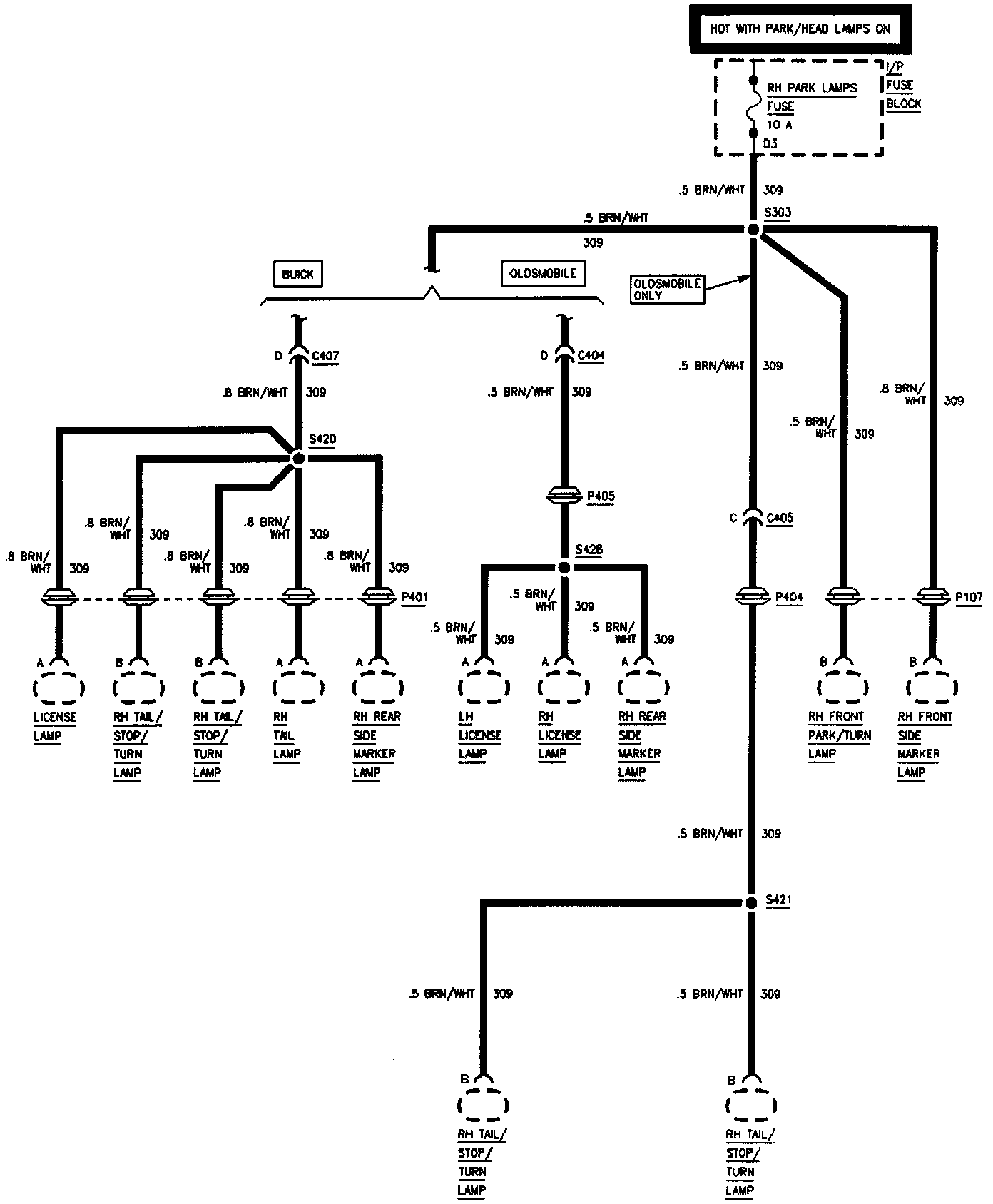

RH PRK LP Fuse

RH PRK LP Fuse (10 A):
