Home
>>
Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
PWR WDO/Sun RF Circuit Breaker and PWR ST Circuit Breaker
PWR WDO/Sun RF Circuit Breaker and PWR ST Circuit Breaker

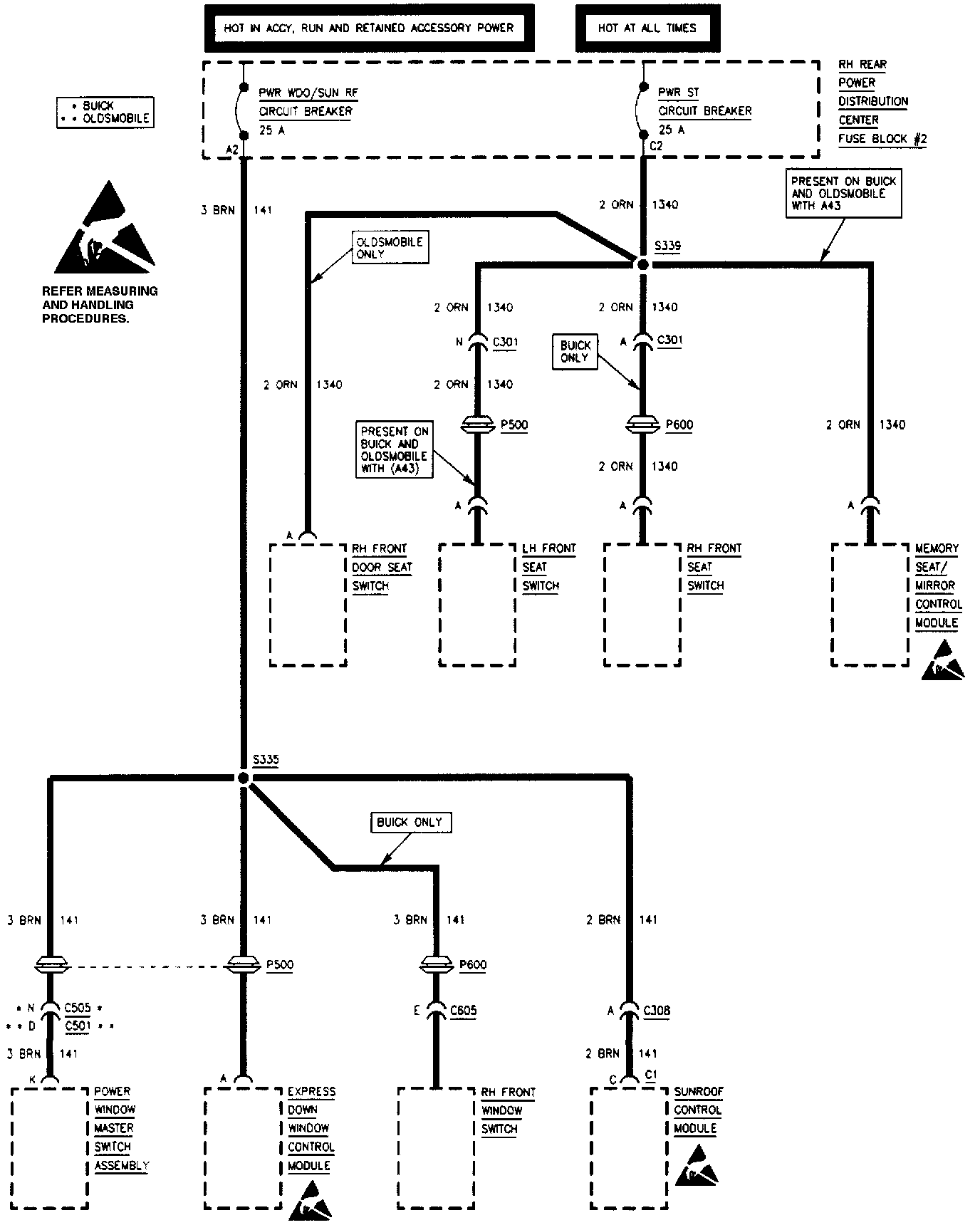

PWR WDO/SUN RF Circuit Breaker (25 A) And PWR ST Circuit Breaker (25 A):
