Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
PWR DR LK Fuse, BATT THERM Fuse
PWR DR LK Fuse, BATT THERM Fuse

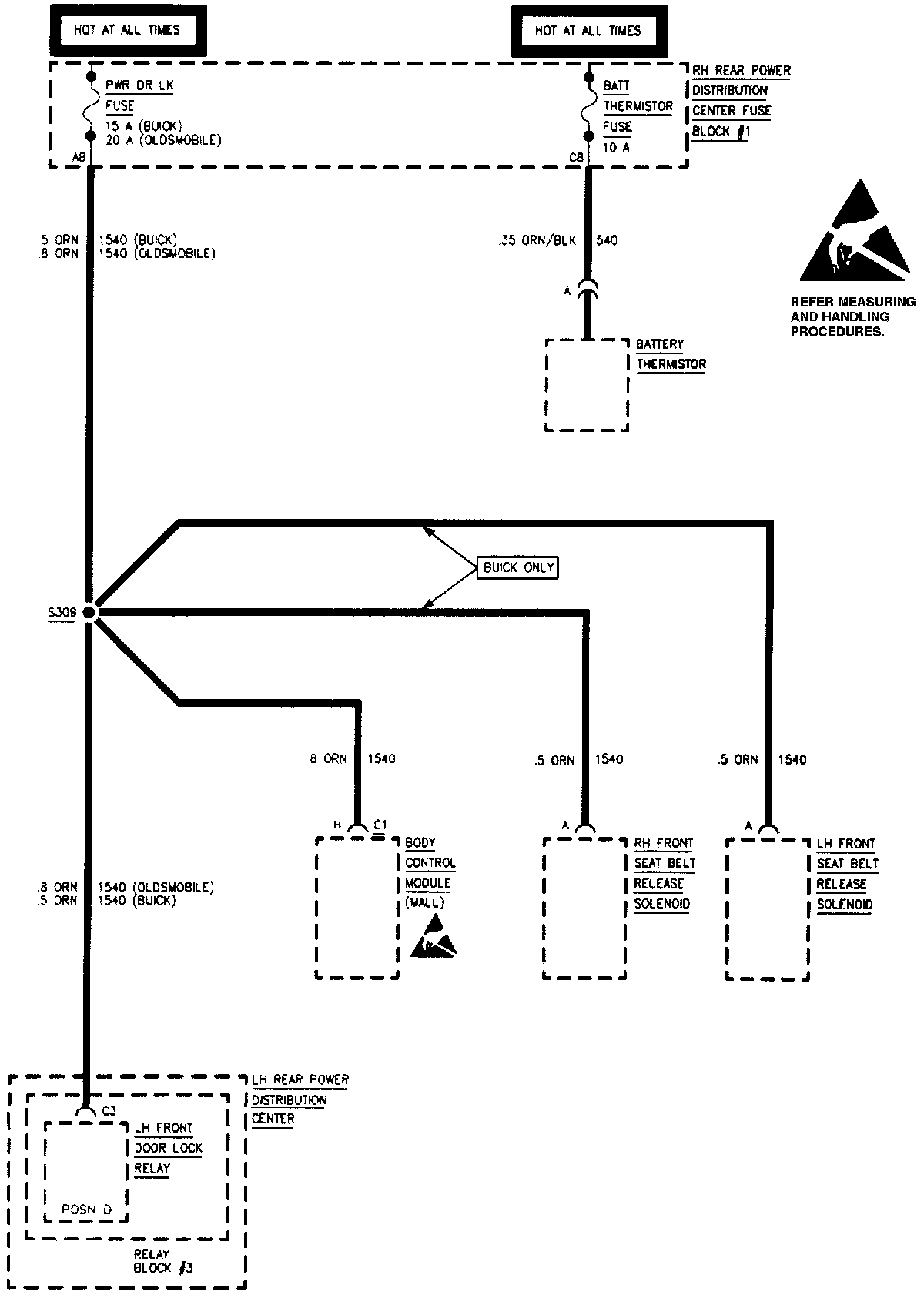

PWR DR LK Fuse (15/20 A), BATT Thermistor Fuse (10 A):
