Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
PCM Fuse
PCM Fuse

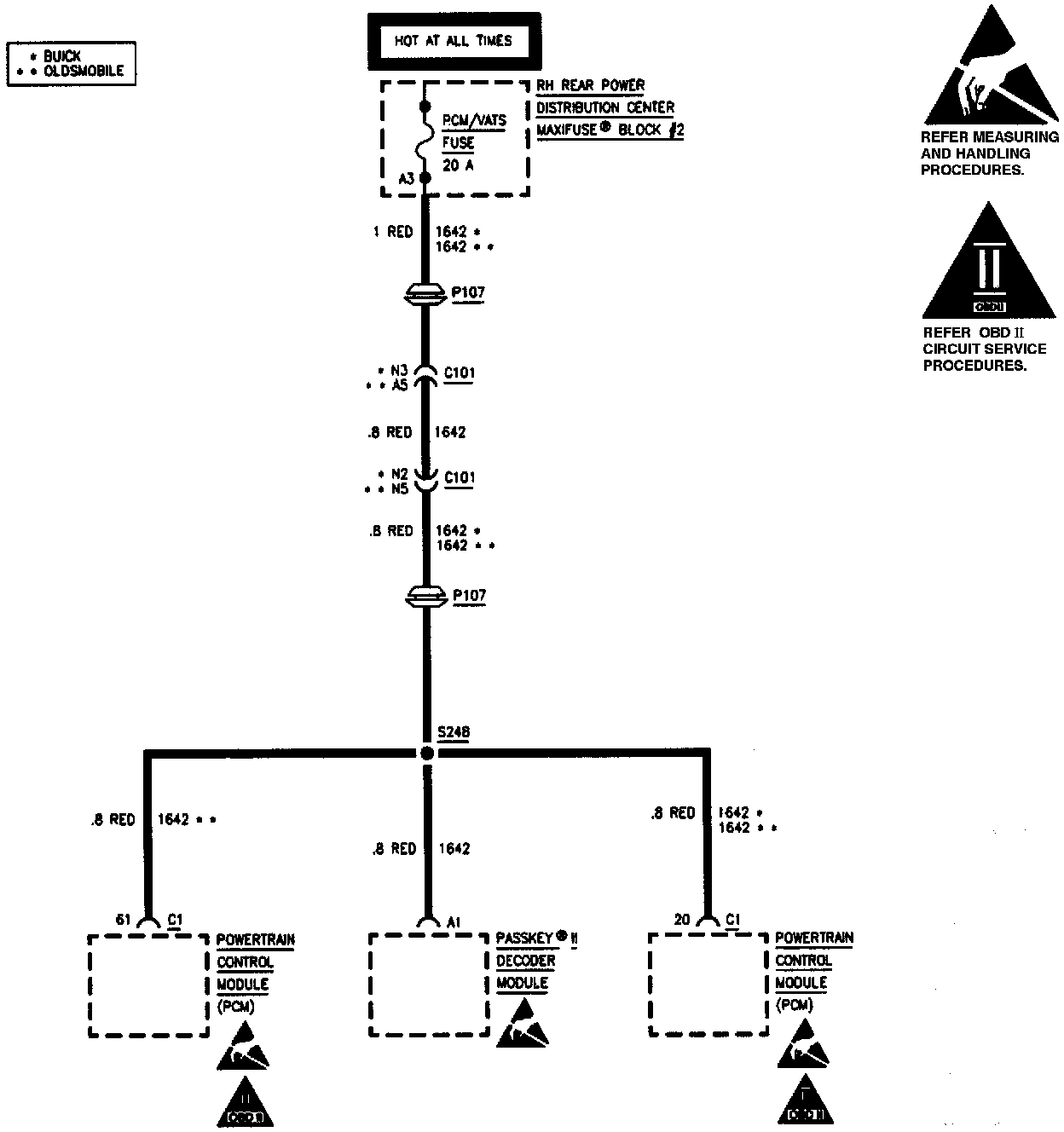

Power Distribution: PCM/VATS Fuse (20 A):
