I/P 2 Fuse and Heated Seats Fuse
I/P 2 Fuse and Heated Seats Fuse

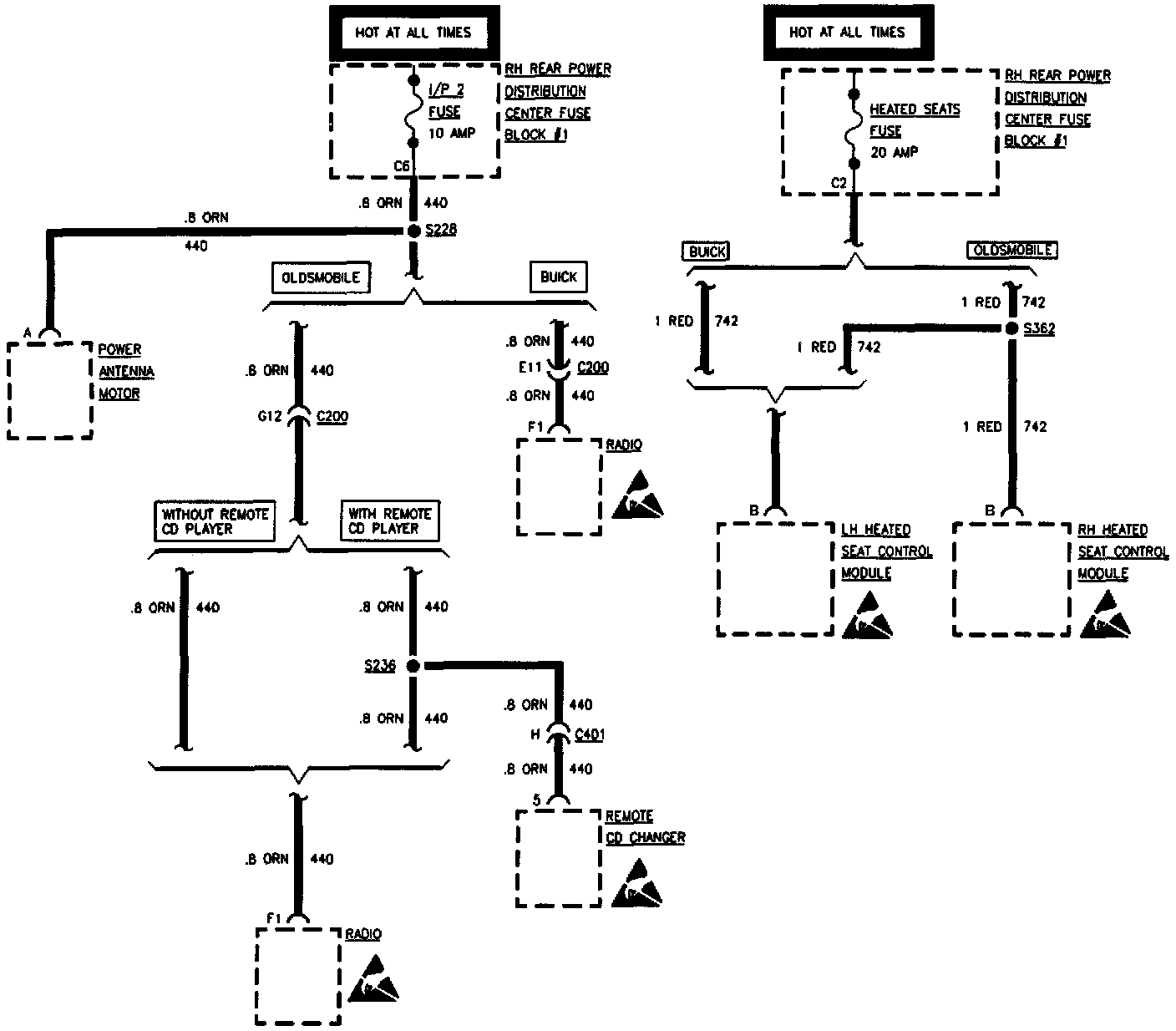

I/P 2 Fuse (10 A) And Heated Seats Fuse (20 A):
