Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
HTD Seat/INST Panel Fuse
HTD Seat/INST Panel Fuse

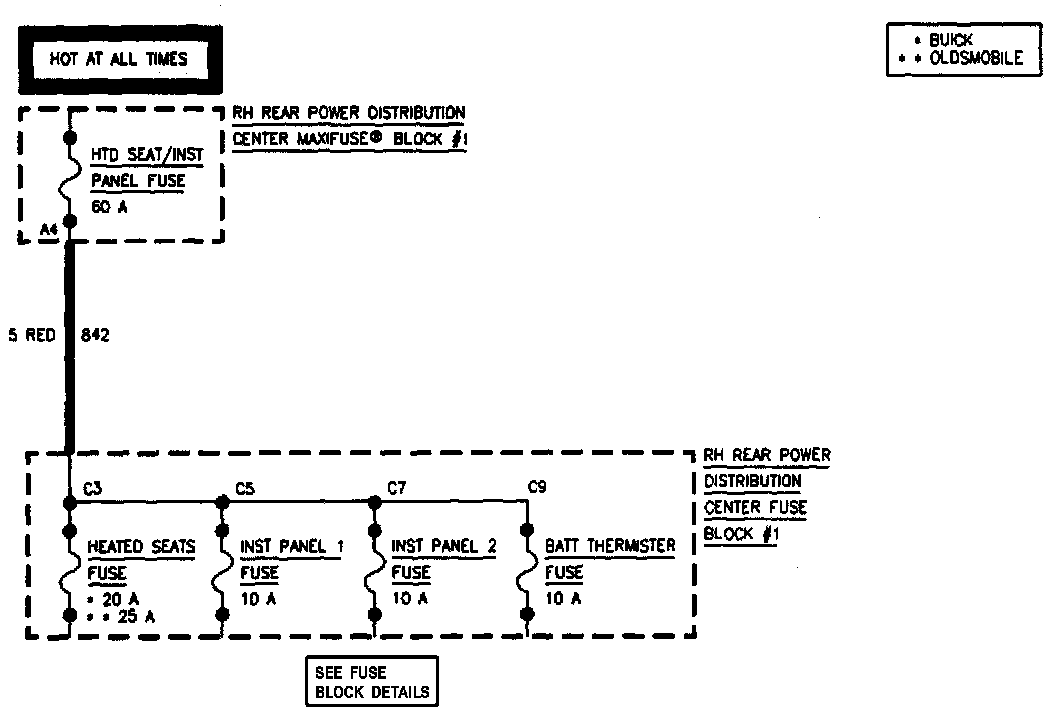

Power Distribution: HTD Seat/INST Panel Fuse (60 A):
