Fuel Pump Fuse, Hazd/Stop LPS Fuse and Int LP Fuse
Fuel Pump Fuse, Hazd/Stop LPS Fuse and Int LP Fuse

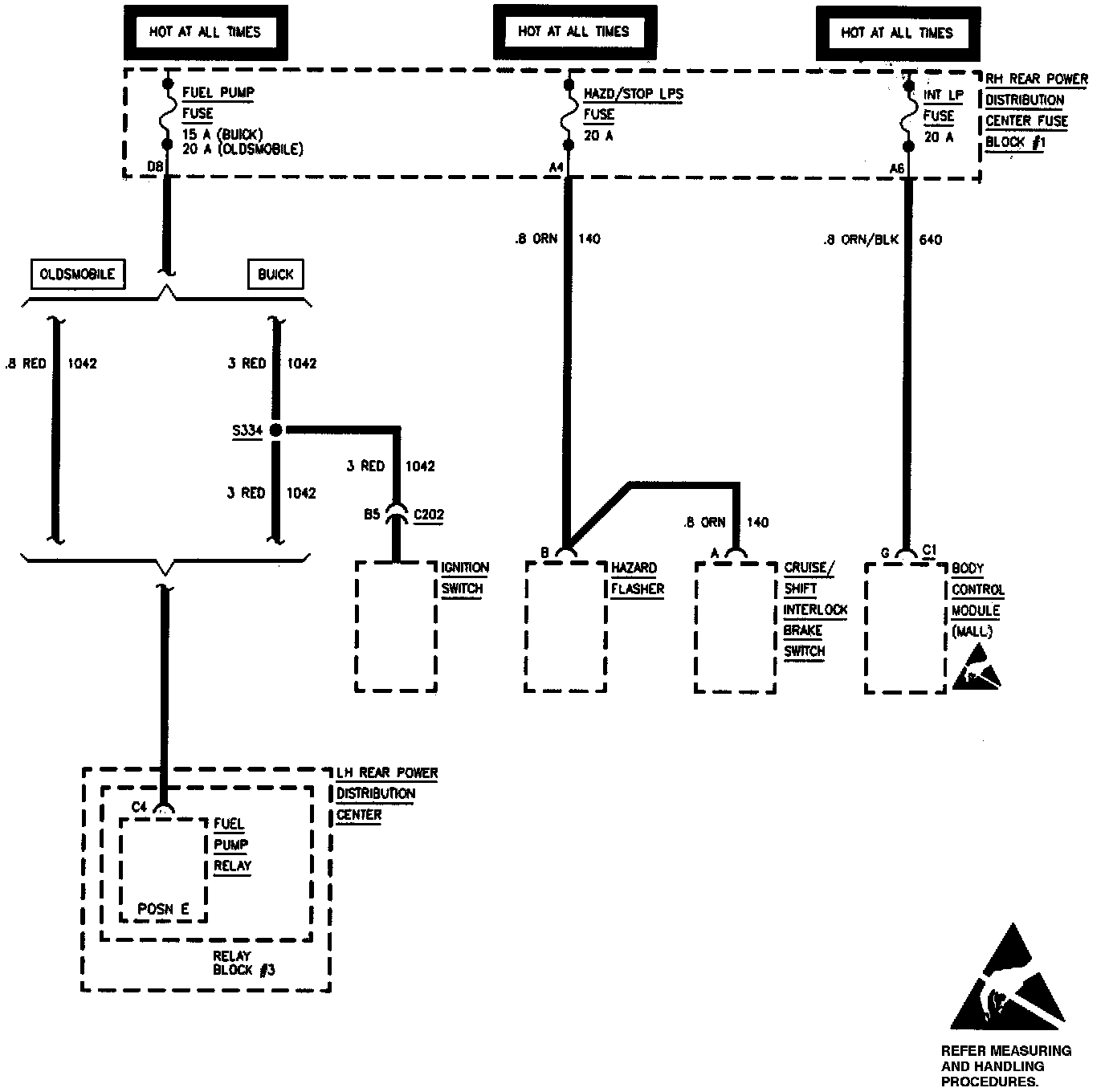

Fuel Pump Fuse (15/20 A), HAZD/Stop LPS Fuse (20 A) And INT LP Fuse (20 A):
