Home >> Buick >> 1997 >> Riviera V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Fog Lamps Fuse

Fog Lamps Fuse

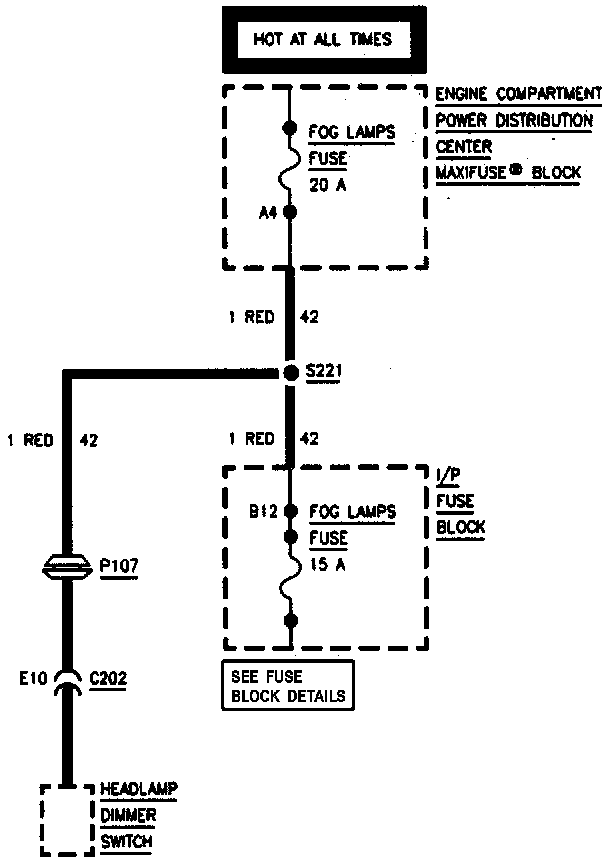

Power Distribution: Fog Lamps Fuse (20 A):
