Home >> Buick >> 1997 >> Riviera V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> ABS Main Fuse

ABS Main Fuse

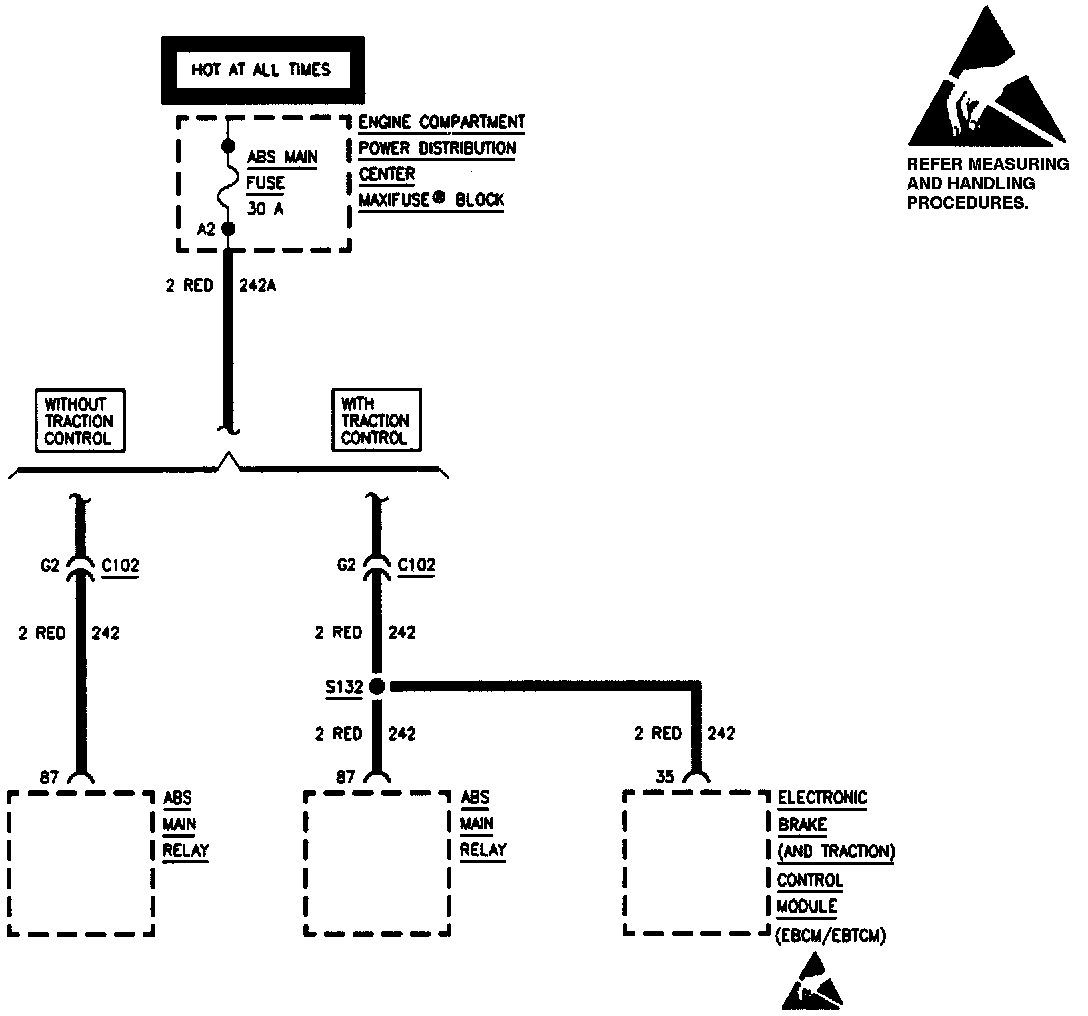

Power Distribution: ABS Main Fuse (30 A):
