Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G302
G302

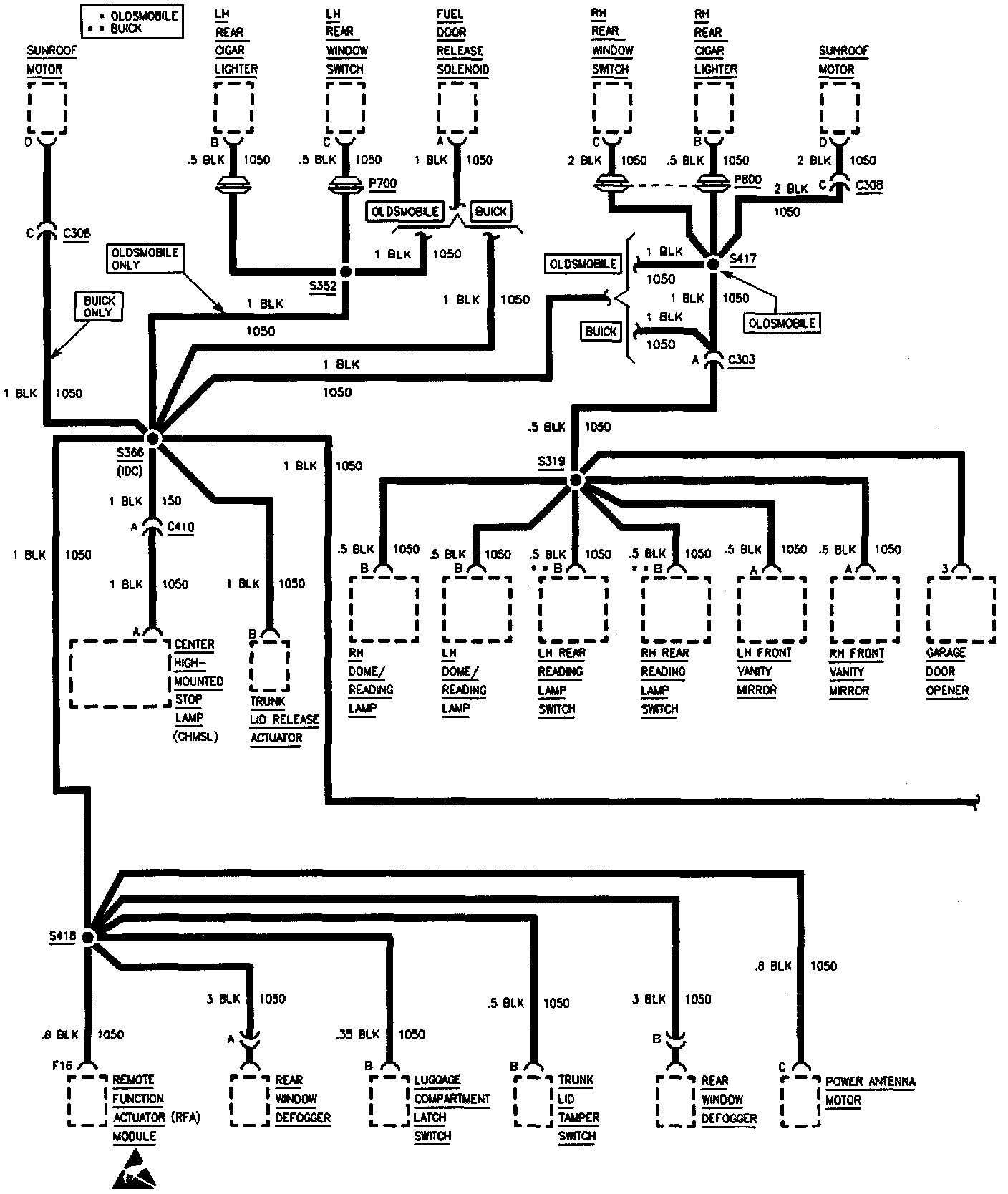

Ground Distribution: G301, G302, G306 (Part 1 Of 2):

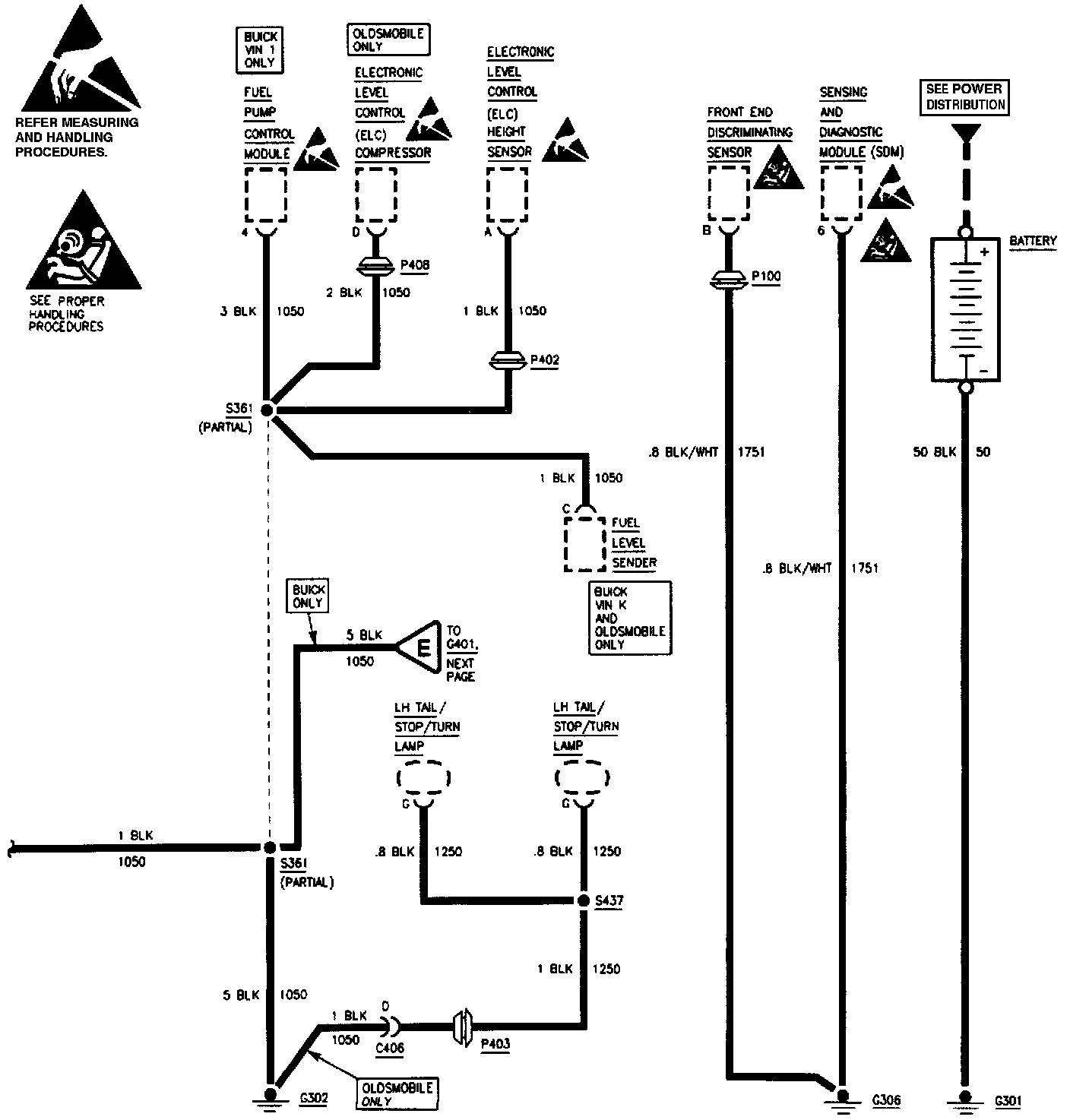

Ground Distribution: G301, G302, G306 (Part 2 Of 2):
