Radiator Hose: Service and Repair

REMOVAL
Remove or Disconnect the following components.
1. Negative battery cable.
2. Raise vehicle.
3. Lower air dam.
4. Drain coolant.
5. Lower air dam.
6. Lower vehicle.
7. Upper tie bar.

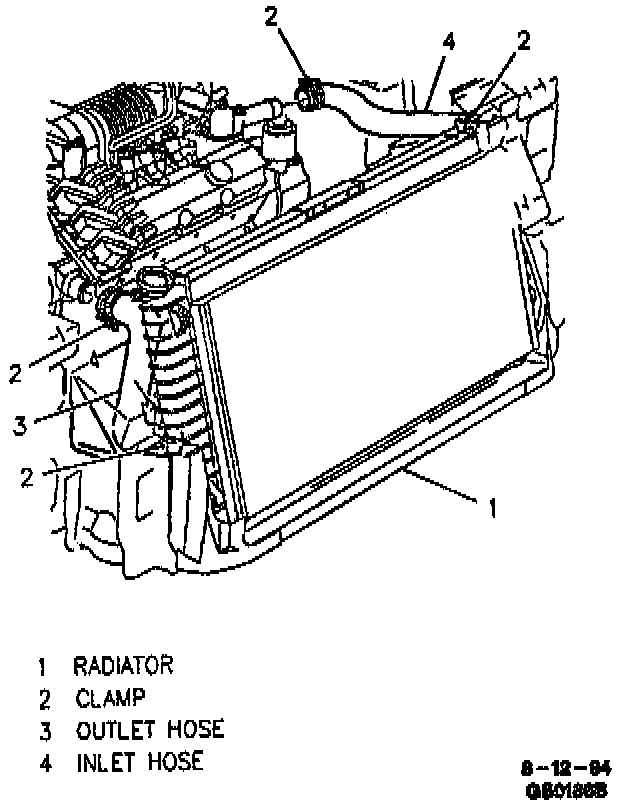

8. Inlet and outlet radiator hoses from radiator.
9. Inlet and outlet radiator hoses from engine.

INSTALLATION
Install or Connect the following components.
1. Inlet and outlet radiator hoses to engine.
2. Inlet and outlet radiator hoses to radiator.
3. Upper tie bar.
^ Bolts to 10 Nm (89 ft. lbs.).
4. Raise vehicle.
5. Lower air dam.
6. Lower vehicle.
7. Refill cooling system.
8. Negative battery cable.
9. Start and idle engine to check for leaks.
