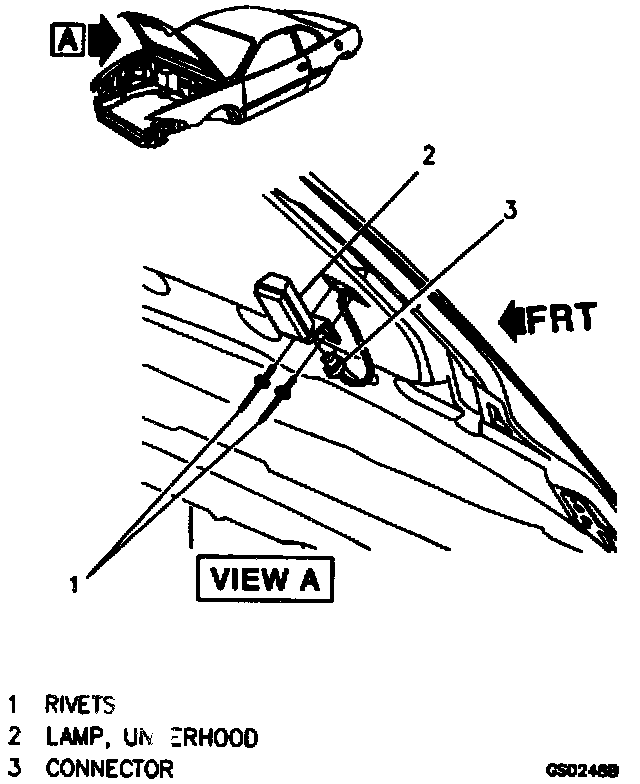

Underhood Lamp: Service and Repair

Description:

Remove or Disconnect
1. Underhood lamp connector.
2. Drill out rivets using an 1/8 inch drill bit.
3. Underhood lamp.

Install or Connect
1. Connector to underhood lamp.
2. Underhood lamp.
3. Rivets.
