Headlamps Replacement

Description:

Remove or Disconnect
^ Use caution when working with halogen bulbs, refer to Service Precautions.
1. Front bumper fascia.
2. Front cornering lamp.

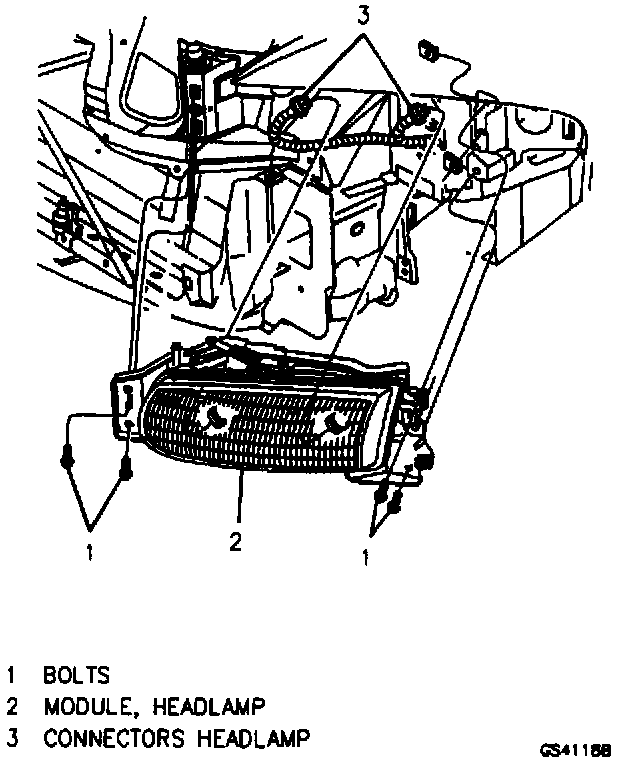

3. Four bolts retaining headlamp to vehicle.
4. Headlamp.
5. Electrical connectors.
6. Headlamp bulbs by turning counterclockwise.

Install or Connect
1. Headlamp bulbs by turning clockwise.
2. Electrical connectors.
3. Headlamp to vehicle.
4. Bolts to retain headlamp.
Tighten
^ Bolts to 9.5 N.m (84 lb. in.).
5. Front cornering lamp.
6. Front bumper fascia.
7. If new headlamp has been installed, remove the horizontal aim adjuster restrictor from headlamp and discard.
8. Check headlamp aim.
