Home >> Buick >> 1997 >> Riviera V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Block/Orifice Tube >> Locations

Expansion Block/Orifice Tube: Locations

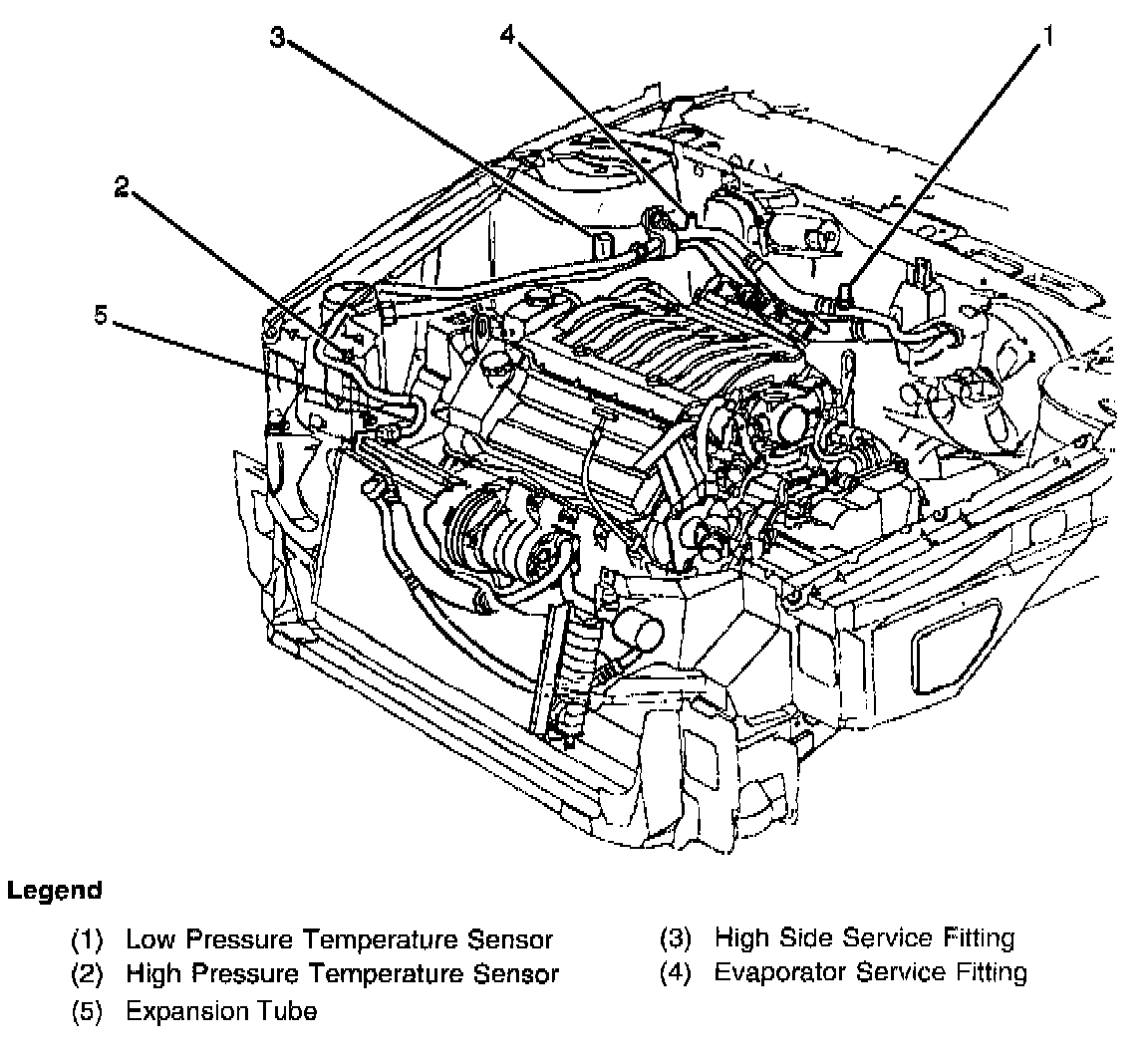

Engine Compartment location






First diagram of 2 Oldsmobile CCOT SYSTEM
Second diagram of 2 Buick VDOT SYSTEM
