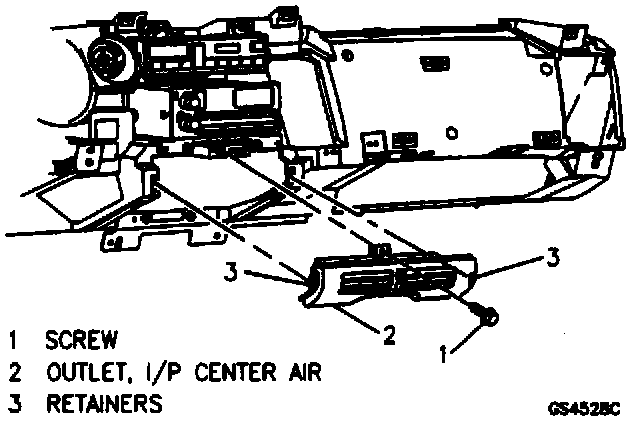

I/P Center Air Outlet

Description:

Remove or Disconnect
1. Cluster trim plate.
2. Knee bolster.
3. Lower I/P trim panel.
4. Screw (1).
5. pull I/P center air outlet (2) from I/P assembly.

Install or Connect
1. I/P center air outlet (2) to I/P assembly.
2. Screw (1).
3. Lower I/P trim panel.
4. Knee bolster.
5. Cluster trim plate.
