Crosscar Ducting

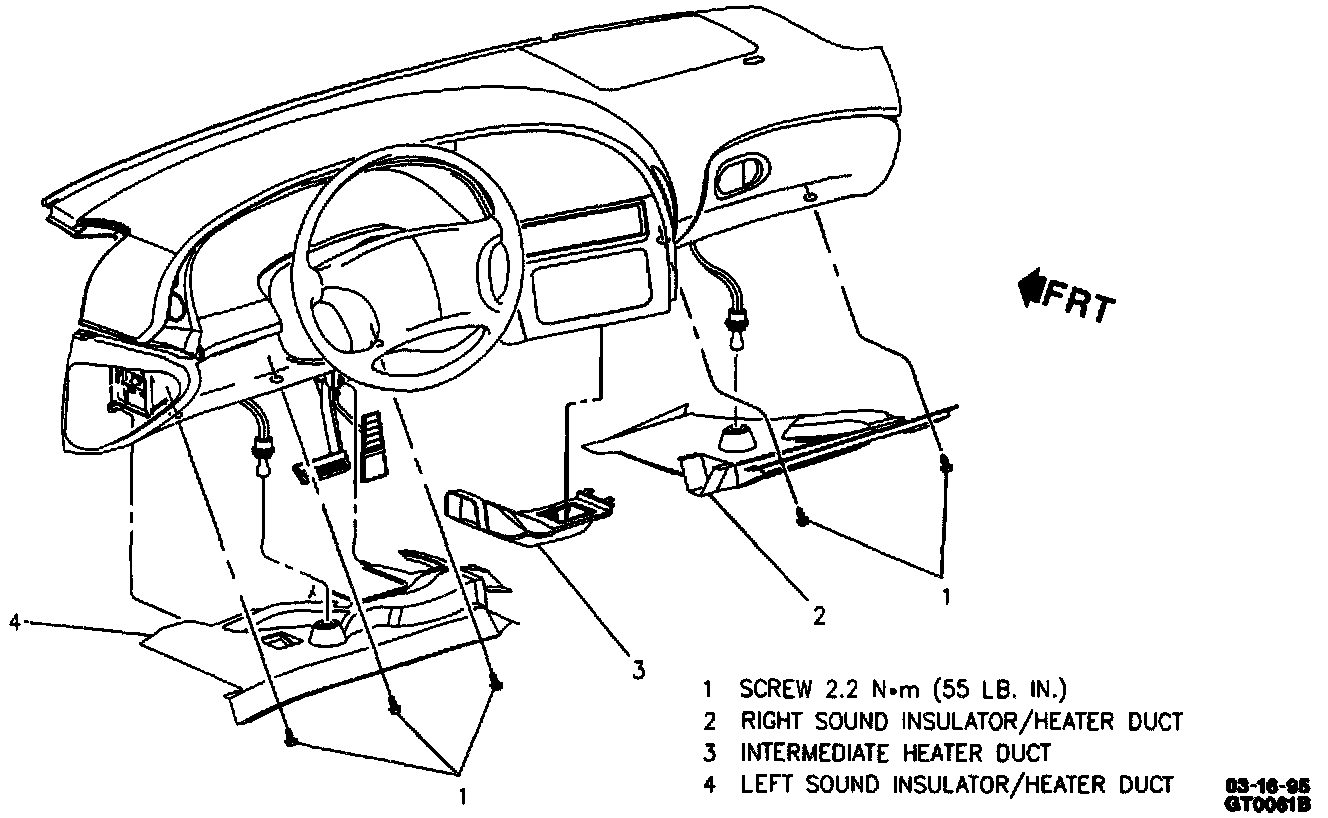

Heater Ducts:

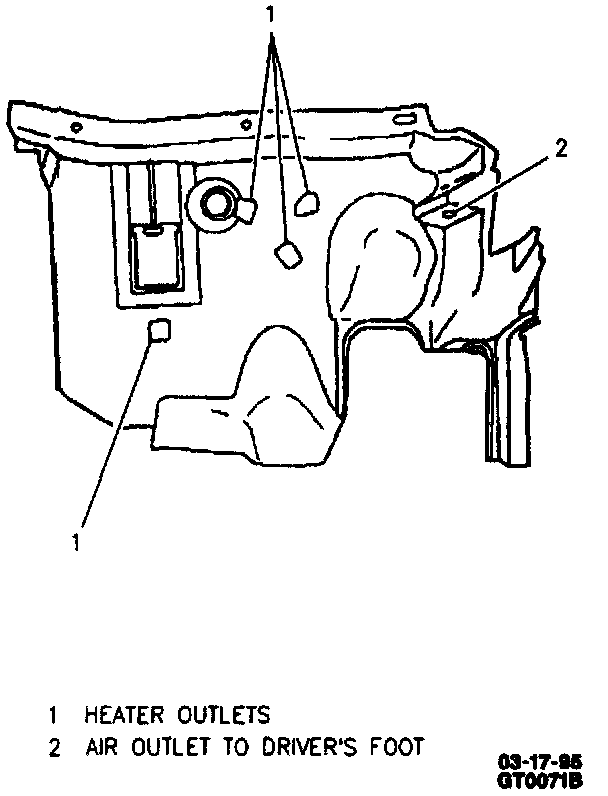

Heater Outlets:

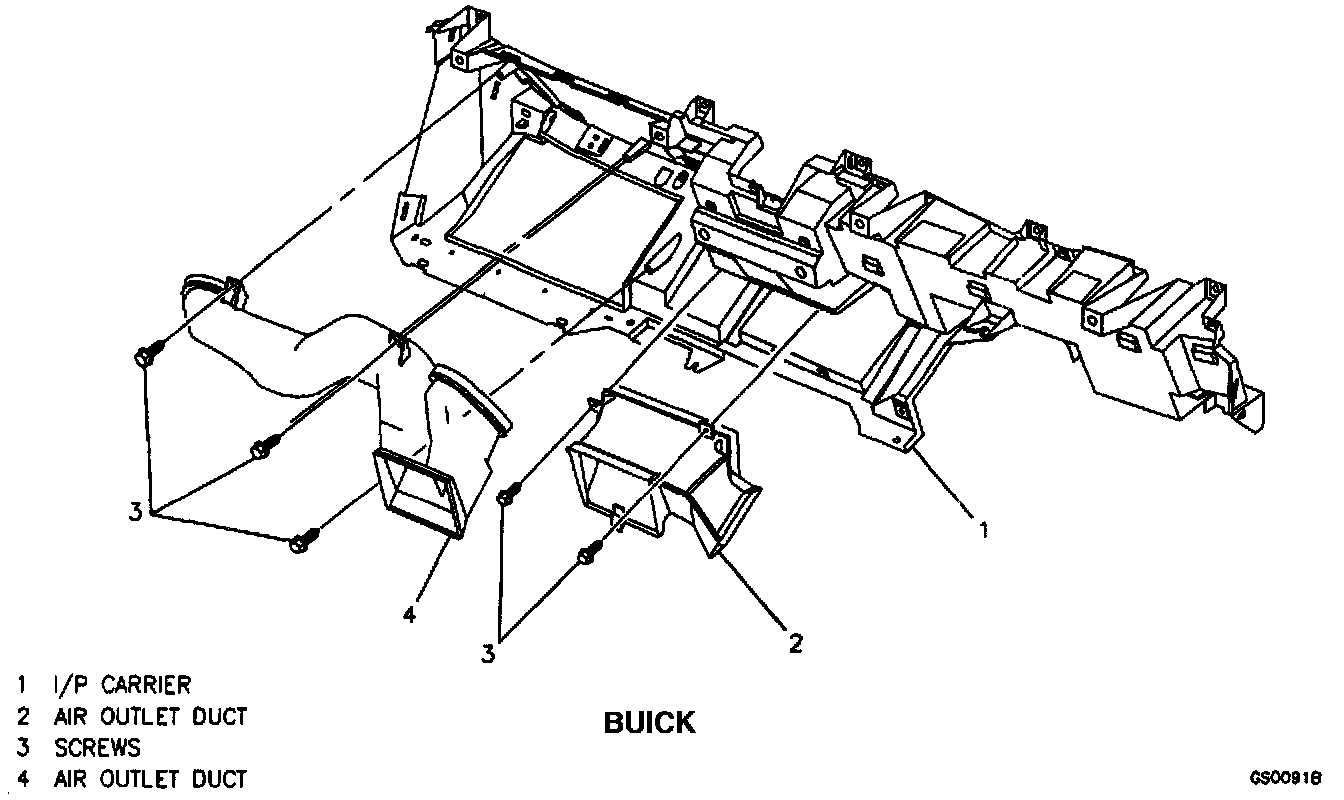

Cross Car Ducts:

Remove or Disconnect

^ Disable SIR system.
1. I/P assembly.
2. Cross car ducts from I/P.

Install or Connect

1. Ducting, securing with mounting screws.

Tighten
^ Ducting mounting screws to 2 N.m (18 lb. in.).

2. I/P assembly.
^ Enable SIR system.
