Shift Interlock, A/T
Shift Interlock, A/T

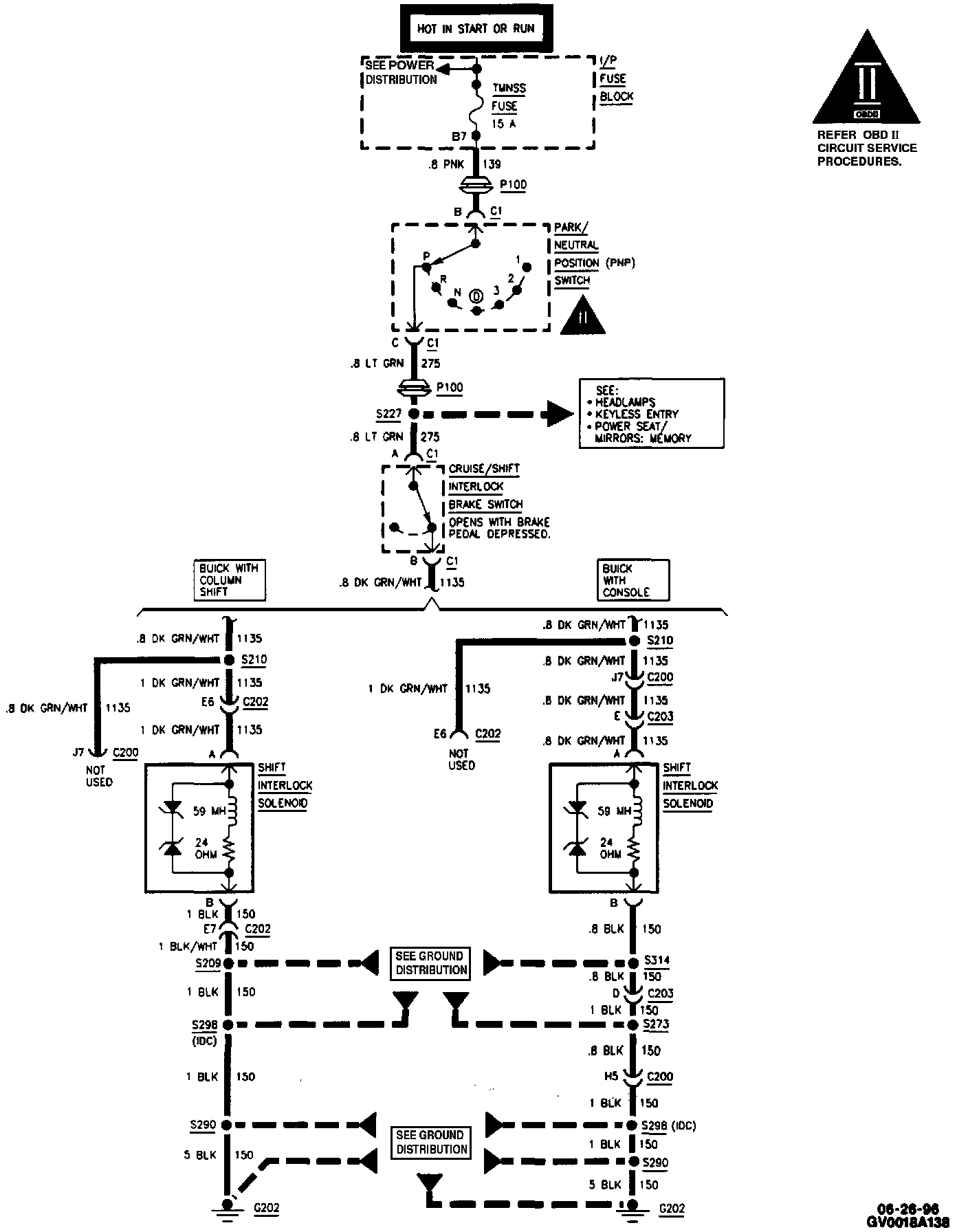

Brake Transaxle Shift Interlock (Part 1 Of 2):

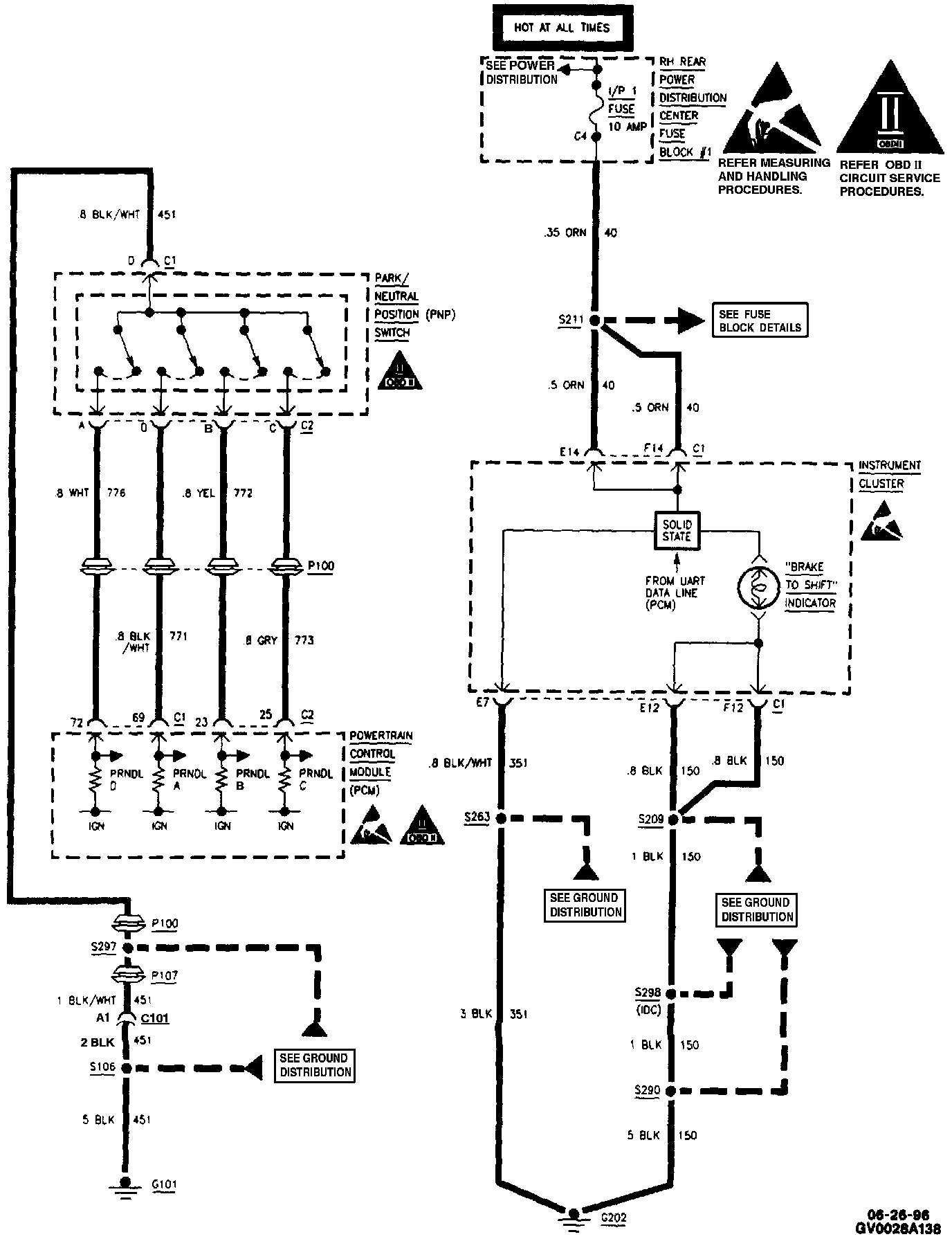

Brake Transaxle Shift Interlock (Part 2 Of 2):
