Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Pinout Description
Pinout Description

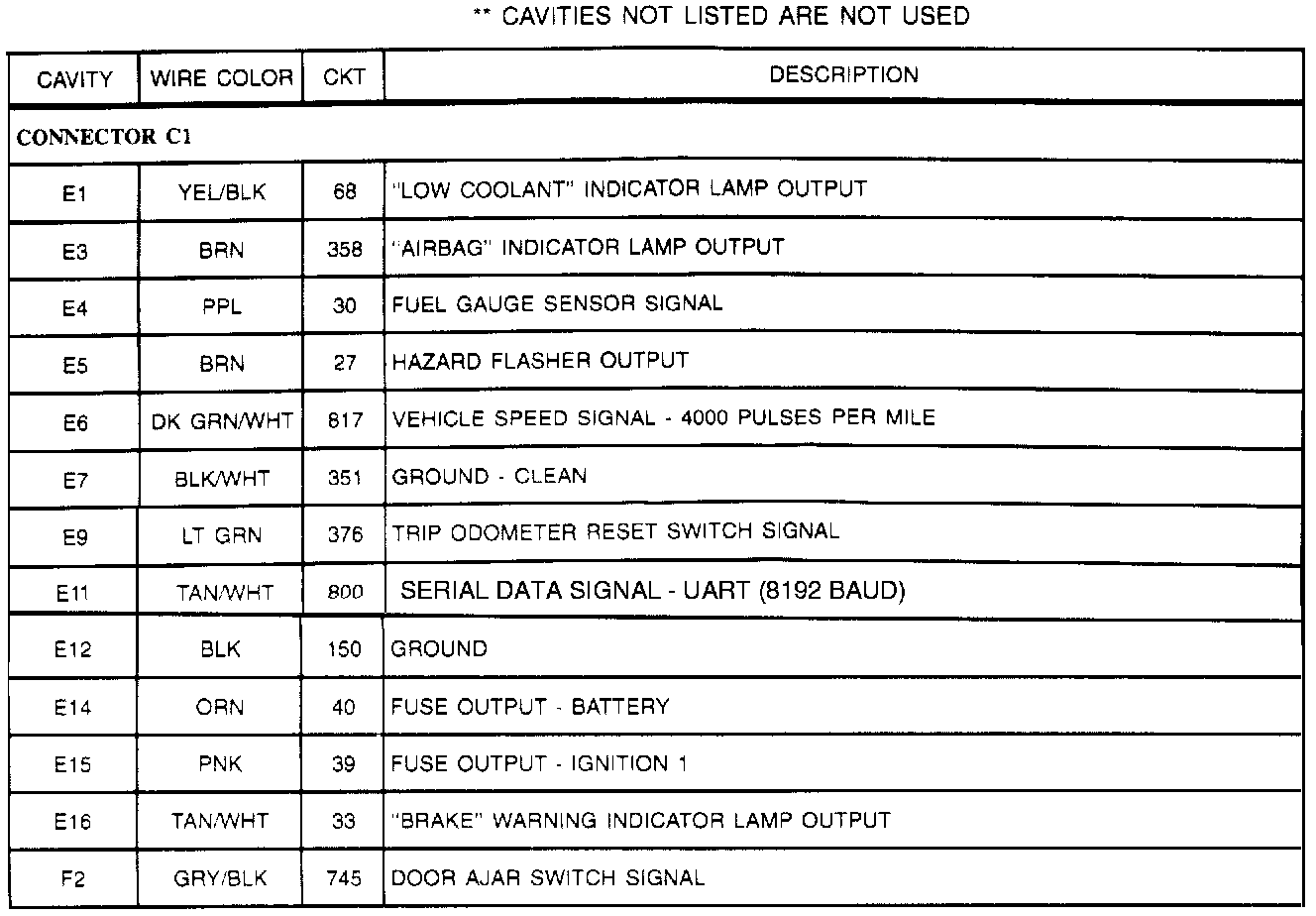

Instrument Cluster Connector Faces C1 And C2 (Part 1 Of 2):

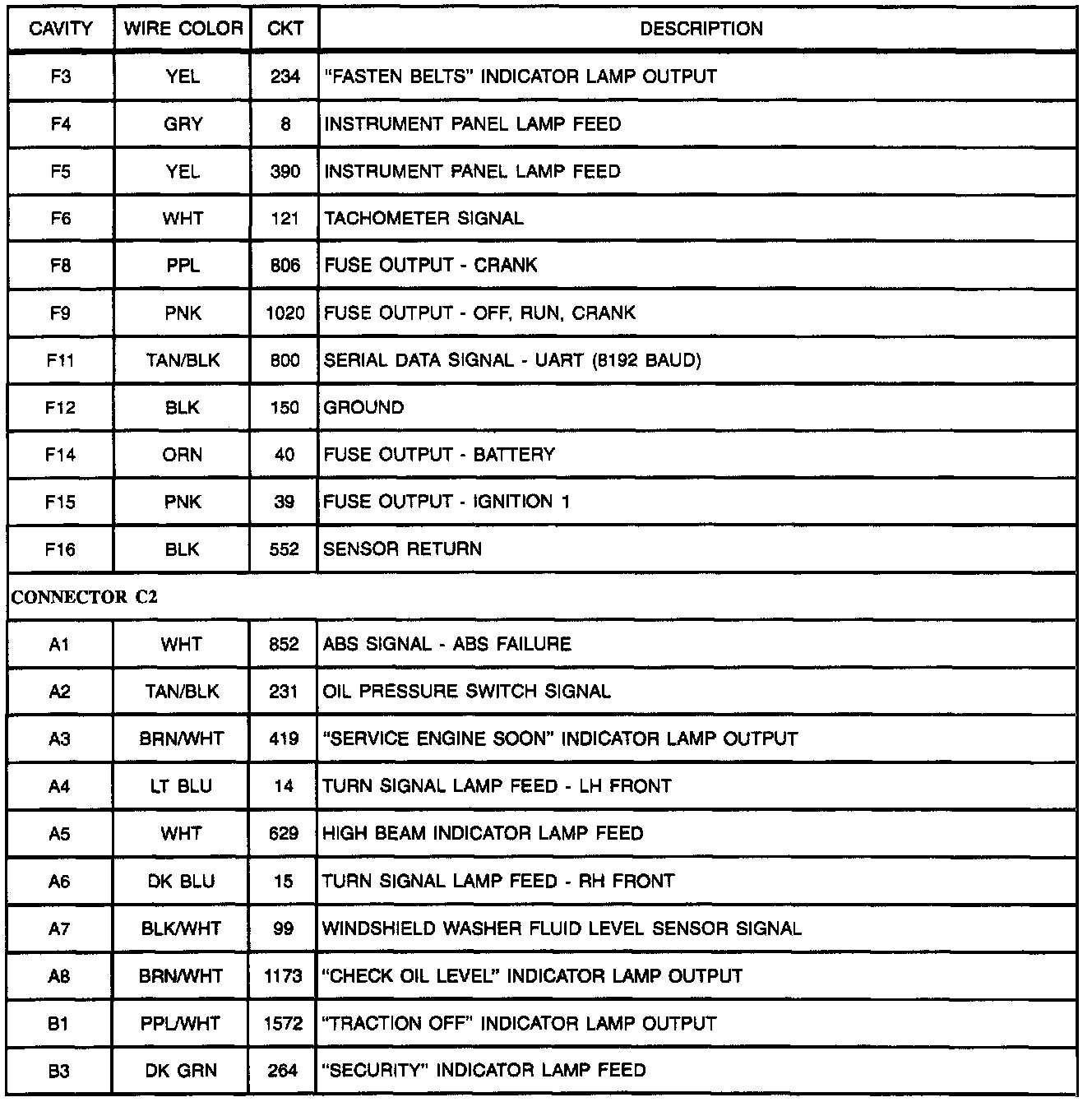

Instrument Cluster Connector Faces C1 And C2 (Part 2 Of 2):
