Parking Brake Release Switch: Service and Repair

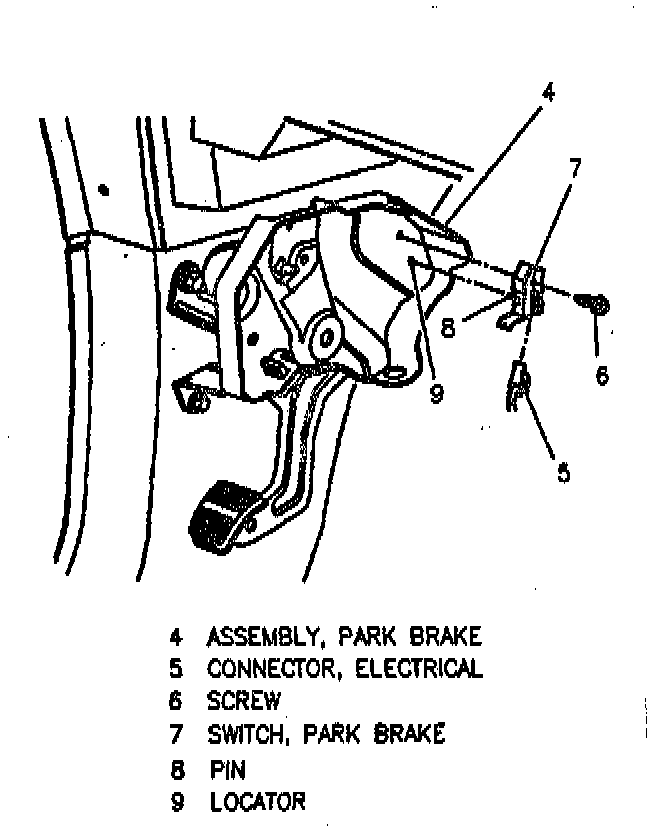

Park Brake Pedal Assembly:

REMOVE OR DISCONNECT
1. Instrument Panel (I/P) sound insulator.
2. Electrical connector from switch.
3. Screw.
4. Switch.

INSTALL OR CONNECT
1. Switch to park brake lever assembly, aligning pin to locator.
2. Screw.
3. Electrical connector.
4. I/P sound insulator.
