Bpmv Block Replacement

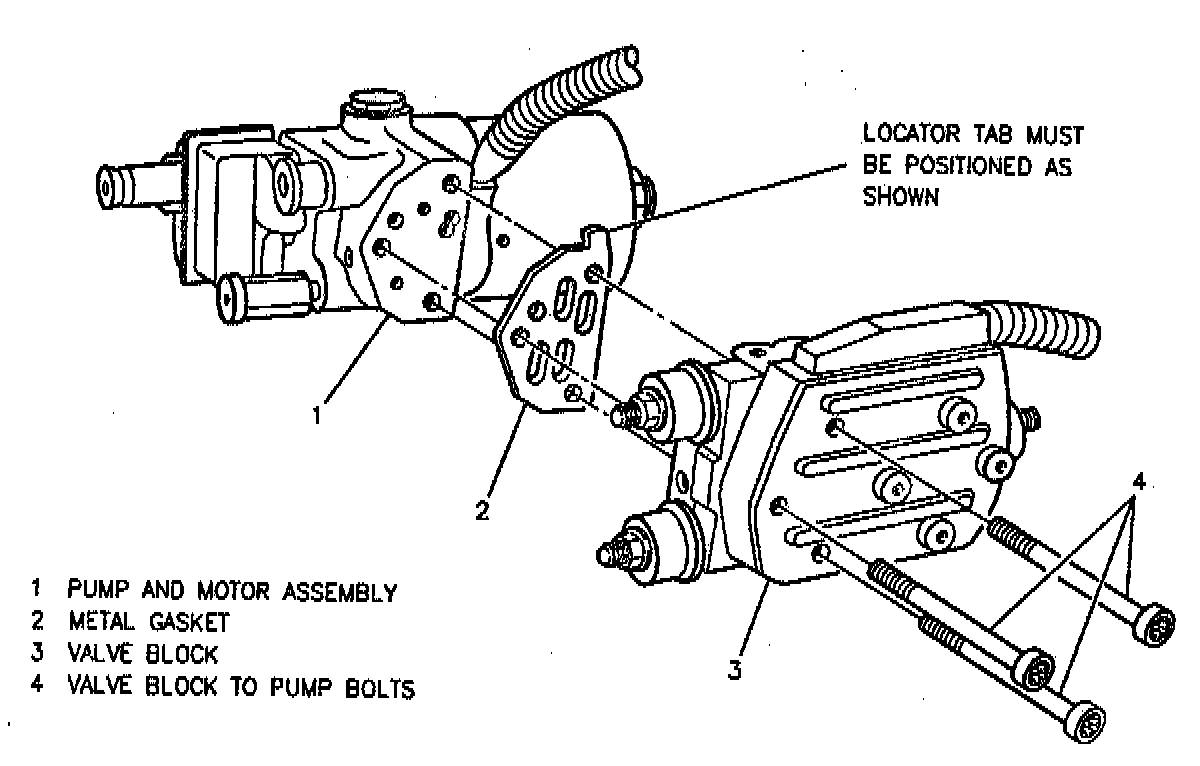

Brake Pressure Modulator Valve Assembly (ABS only shown, ABS/TCS Similar):

NOTE: The Brake Pressure Modulator Valve (BPMV) assembly must be removed before replacing the valve block.

NOTE: A clean work area is needed to prevent contamination of the BPMV and its internal components.

REMOVE OR DISCONNECT
1. BPMV, refer to BPMV replacement.
2. Valve block-to-pump attachment bolts.
3. Valve block from Pump and Motor assembly.

INSTALL OR CONNECT
1. Metal gasket.

CAUTION: Improper installation/inverting of the metal gasket could introduce extremely high pressures during the autobleed procedure and cause severe damage to various components on the brake system. Make sure the locator tab is positioned correctly so that all the internal ports between the pump and valve block assembly are not blocked. Valve block to pump bolts should be tightened to 29 Nm (21.4 ft. lbs).

2. Valve block to Pump and Motor assembly.
3. Attachment bolts. Tighten Bolts to 29 Nm (21.4 ft. lbs)
4. BPMV.
