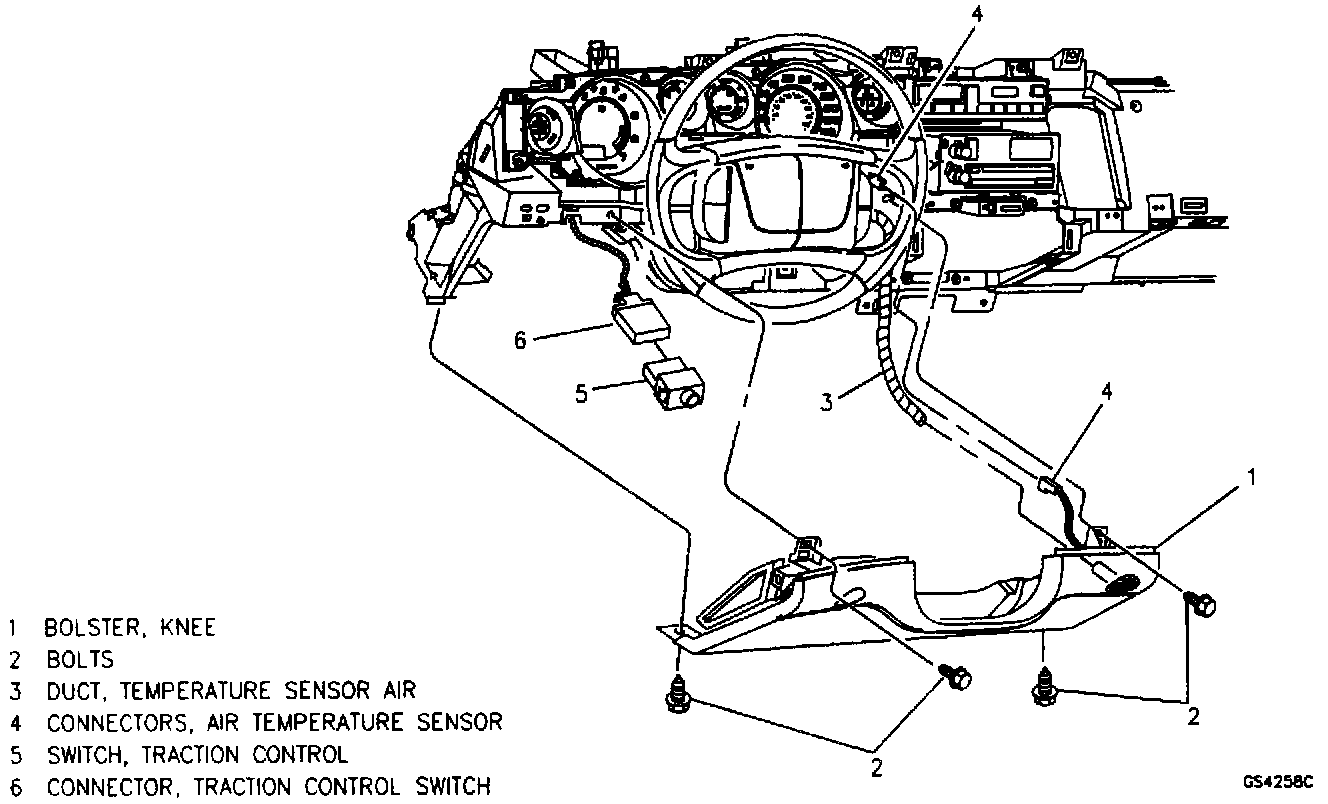

Knee Bolster

Description:

Remove or Disconnect
1. I/P Cluster trim plate.
2. Sound insulator.
3. Bolts (2).
4. Knee bolster from I/P.
5. Electrical connectors (4 and 6).
6. Traction control switch and air temperature sensor from knee bolster.

Install or Connect
1. Traction control switch and air temperature sensor to knee bolster.
2. Electrical connectors (4 and 6).
3. Knee bolster to I/P
4. Bolts (2).
5. Sound insulator.
6. I/P cluster trim plate.
