Ashtray Assembly Without Center Console
Ashtray Assembly Without Center Console

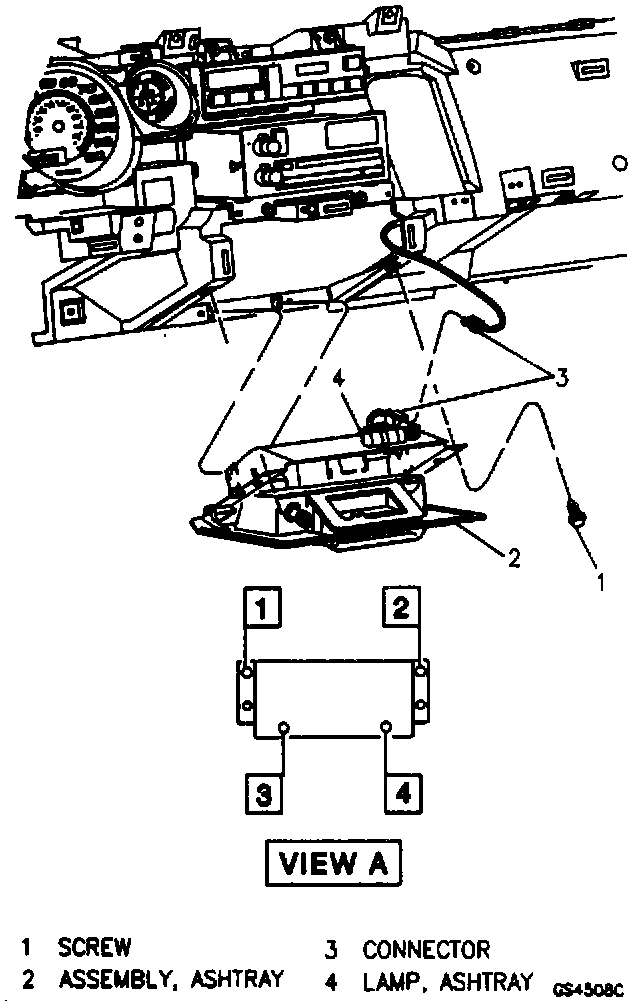

Description:
Remove or Disconnect
1.
Screws (1).
2.
Ashtray assembly (2) from I/P
3.
Connector (3).
Install or Connect
1.
Connector (3).
2.
Ashtray assembly (2) to I/P
3.
Screws (1).
