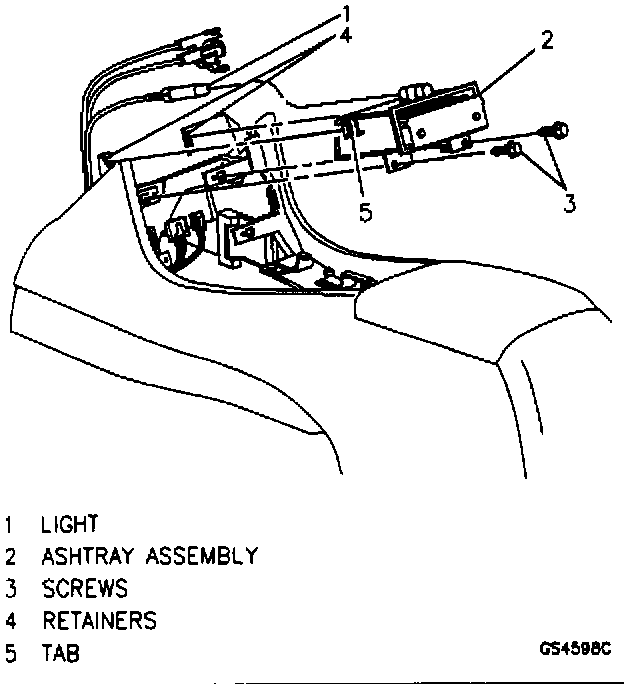

Ashtray Assembly With Center Console

Description:

Remove or Disconnect
1. Upper console trim plate.
2. Screws (3).
3. Pull ashtray assembly from console, releasing tabs (5) from retainers (4).
4. Electrical connectors.

Install or Connect
1. Electrical connectors.
2. Ashtray assembly to console, push to engage tabs (5).
3. Screws (3).
4. Upper console trim plate.
