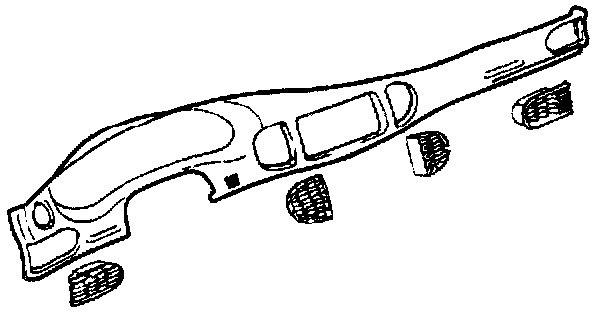

Instrument Panel Outer Air Outlets Deflector Replacement

Description:

Remove or Disconnect
1. Instrument panel cluster trim plate.
2. Using a small flat-bladed tool depress the locking retainers on the top of the instrument panel outer air outlets deflector and press out the instrument panel Outer air outlets deflector.

Install or Connect
1. Align instrument panel outer air outlets deflector to opening in instrument panel cluster trim plate.
2. Press in instrument panel outer air outlets deflector until locked into place.
3. Check instrument panel outer air outlets deflector for proper movement.
