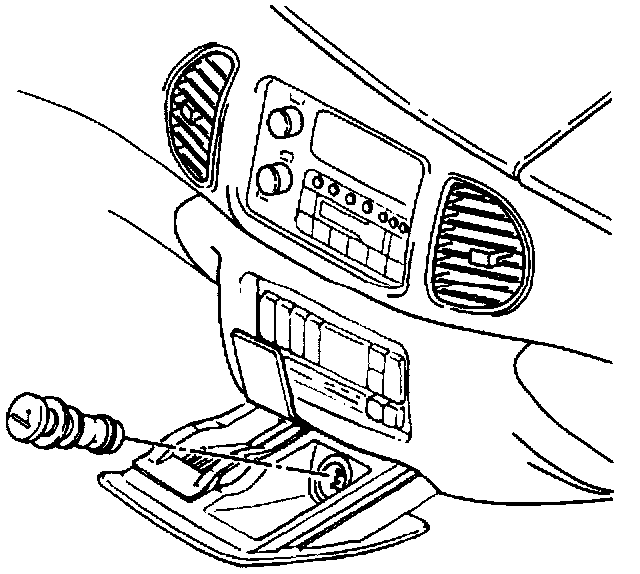

Cigarette Lighter: Service and Repair

Instrument Panel Ashtray:

Remove or Disconnect
1. Instrument panel steering column opening filler.
2. Instrument panel cluster trim plate.
3. Instrument panel cigarette lighter.

Install or Connect
1. Instrument panel cigarette lighter.
2. Instrument panel cluster trim plate.
3. Instrument panel steering column opening filler.
