Home >> Buick >> 1997 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Locks >> System Diagram >> C2 (Actuator Motor) >> LF

LF

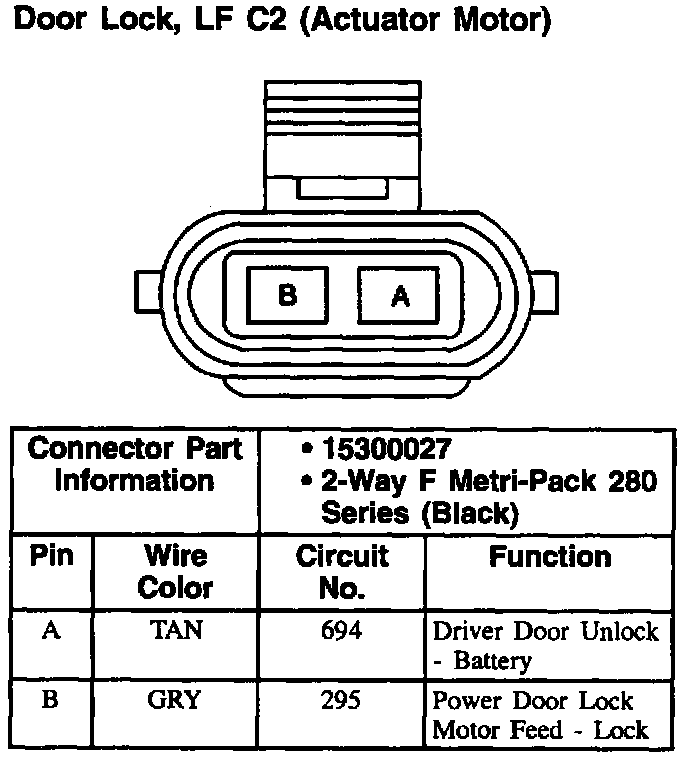

Door Lock, LF: C2 (Actuator Motor):
