Buick
>>
1997
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
System Diagram
>>
C1 (Ajar Indicator Switch)
>>
RF
RF

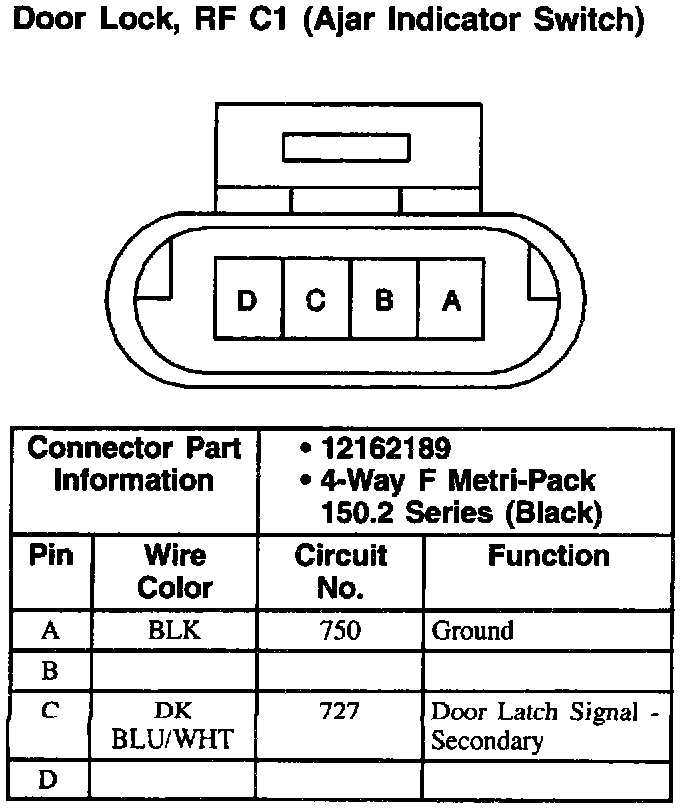

Door Lock, RF: C1 (Ajar Indicator Switch):
