Hydraulic Thermo Valve: Service and Repair

^ Tool Required:
- J 34094-A Thermo Element Height Gage

REMOVE OR DISCONNECT
1. Oil pan.
2. Thermo element retainer and element.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

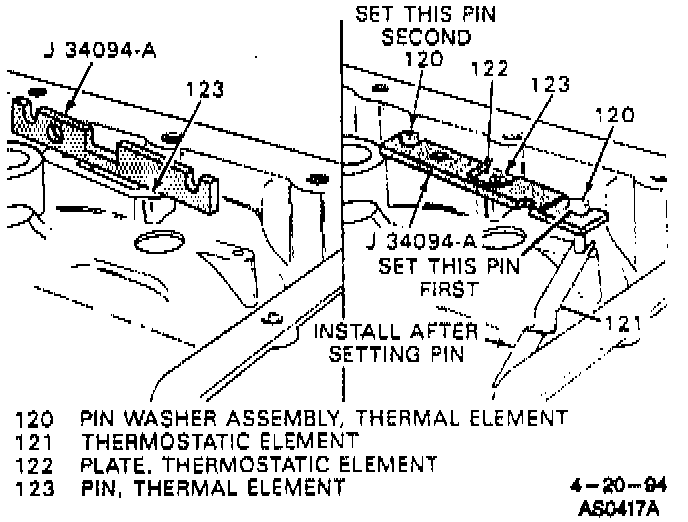

1. Set thermo pin height with J 34094-A.

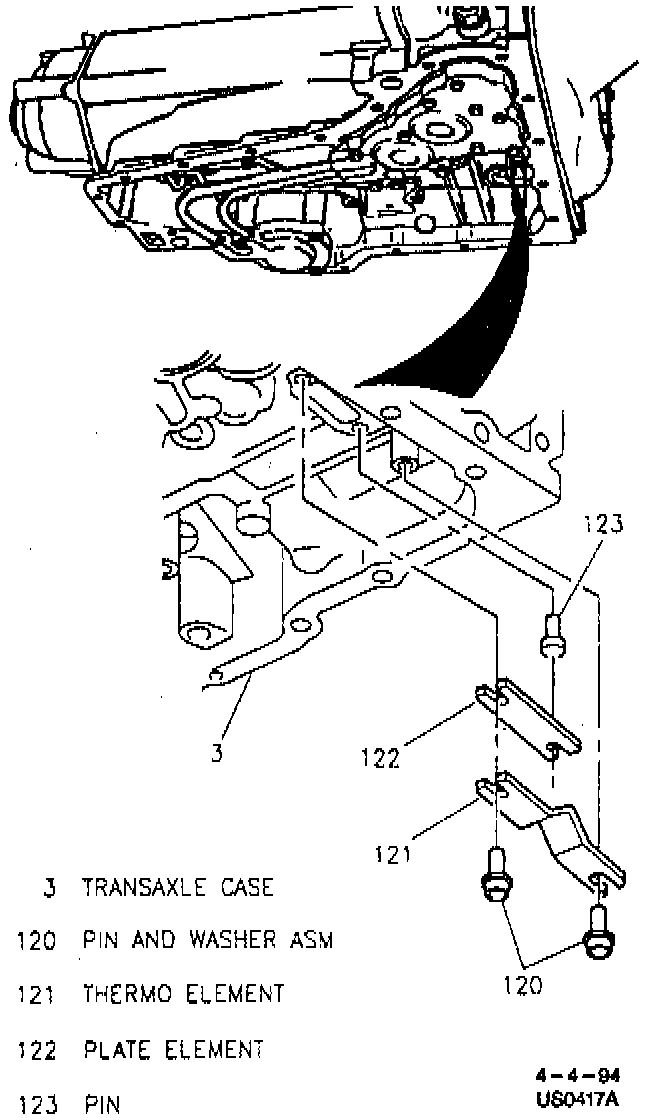

2. New element plate.
3. Pin and washer.
- Set height of pin furthest from accumulators first using J 34094-A.
4. Thermo element.
5. Oil pan.
