Fluid Pump: Service and Repair

REMOVE OR DISCONNECT
1. Case side cover pan.
2. Electrical wiring harness, as needed.

NOTICE: Do not remove the three bolts/screws which hold the pump together.

3. Pump bolts/screws.

Inspect
- For pump inspection. Refer to TRANSMISSION TRANSAXLE UNIT REPAIR MANUAL.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

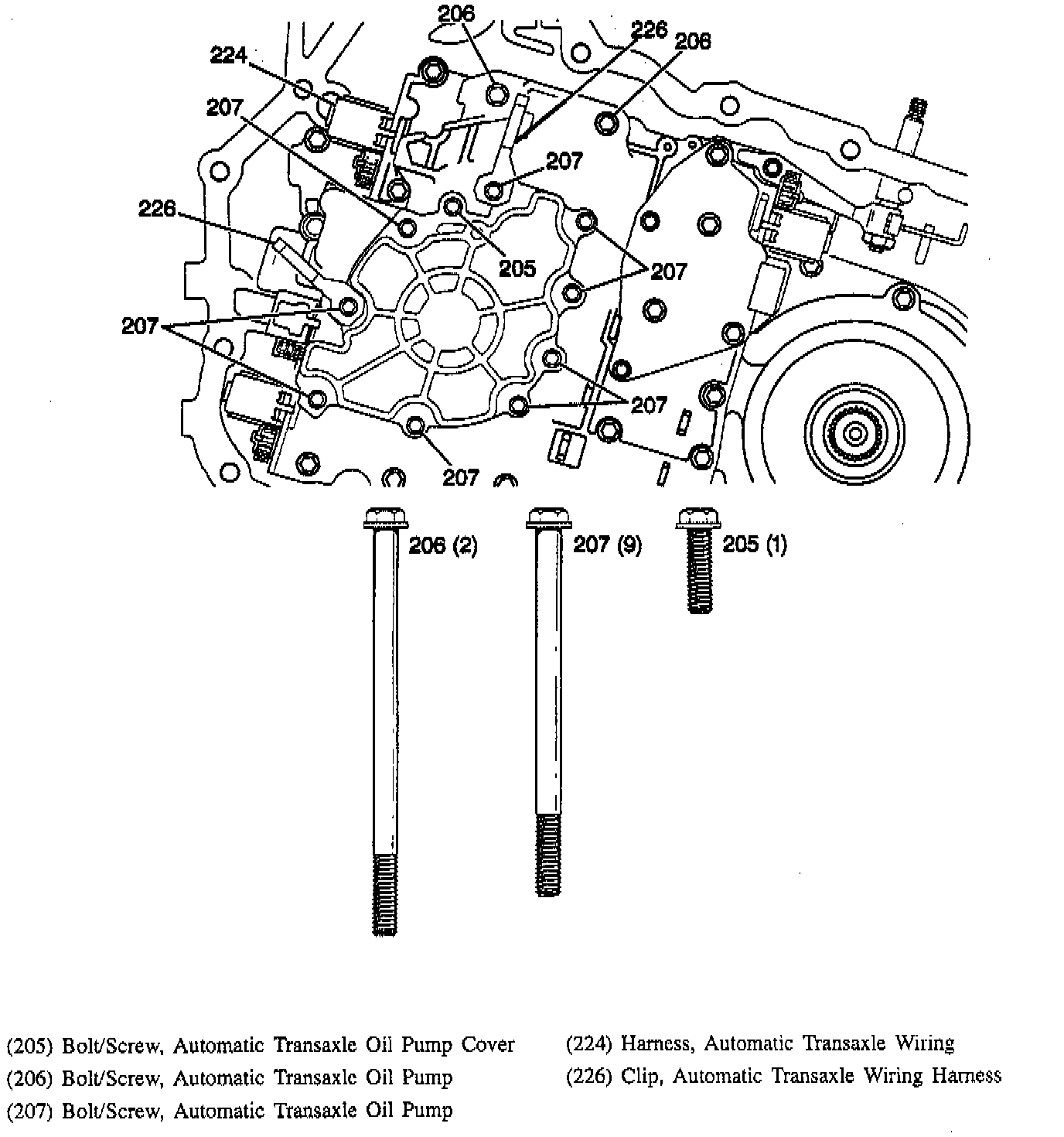

1. Pump to valve body.
2. Bolts/screws.

- Tighten:
^ Cover M6 X 1.0 X 20-Bolt/Screw to 8 Nm (70 inch lbs.).
^ Pump M6 X 1.0 X 85-Bolt/Screw to 12 Nm (106 inch lbs.).
^ Pump M6 X 1.0 X 95-Bolt/Screw to 12 Nm (106 inch lbs.).
3. Electrical wiring harness.
4. Case side cover pan.
