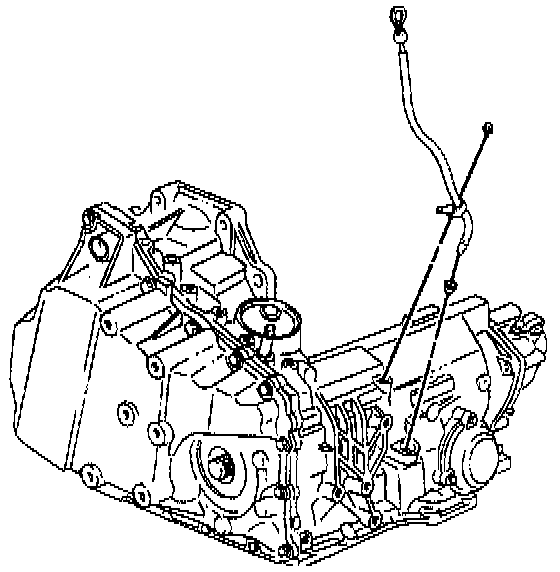

Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

REMOVE OR DISCONNECT
1. Fluid level indicator.
2. Raise and suitably support the vehicle. Engine Controls
3. Front exhaust manifold pipe.
4. Power steering gear heat shield.
5. Bolt/screw from the fluid filler tube bracket.
6. Fluid filler tube.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Position fluid filler tube.

Important: When installing tube, do not place seal on tube or seal will be damaged.

2. Bolt/screw through the fluid filler tube bracket.
- Tighten bolt/screw to 13 Nm (115 inch lbs.).
3. Power steering gear heat shield.
4. Front exhaust manifold pipe.
5. Lower vehicle.
6. Fluid level indicator.

NOTICE: Do not overfill transaxle. Overfilling causes foaming and loss of fluid through the vent and may damage the automatic transaxle.

Inspect
- For proper completion of repairs.
- For proper fluid level.
- For fluid leaks.
