Tilt Head Assembly

^ Tools Required:
- J 23653-SIR Lock Plate Compressor
- J 21854-01 Pivot Pin Remover
- Or Equivalents

REMOVE OR DISCONNECT
1. Do all steps, under "REMOVE OR DISCONNECT," refer to SIR COIL ASSEMBLY.
2. Do steps 7 and 8, under "REMOVE OR DISCONNECT," refer to T/S & MULTIFUNCTION SWITCH ASM.
3. Do steps 2 through 6, under "REMOVE OR DISCONNECT," refer to LINEAR SHIFT ASM (REMOVAL).(Column shift only)
4. Do steps 2 through 7, under "REMOVE OR DISCONNECT," refer to UPPER TILT HEAD COMPONENTS.
5. Do steps 6 through 8, under "REMOVE OR DISCONNECT," LOCK MODULE ASM.
6. Do steps 4 and 5, under "REMOVE OR DISCONNECT," refer to TILT SPRING.

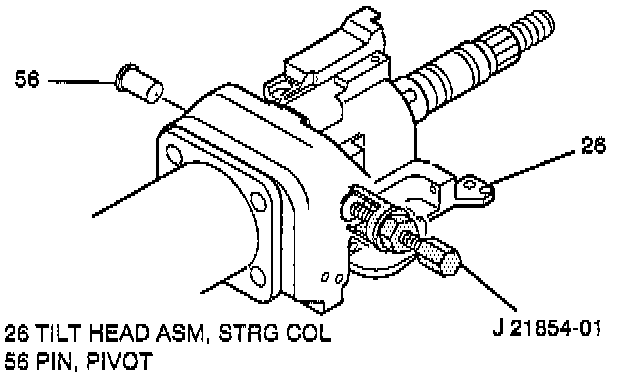

7. Two pivot pins (56) using J 21854-01.
8. Steering column tilt head assembly (26).
^ Pull tilt arm to disengage steering wheel lock shoes from dowel pins in steering column support assembly (57).

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems. Failure to do so may result in component damage or malfunction of steering column.

1. Steering column tilt head assembly (26).
^ Using tilt lever position lock shoes to dowel pins.
^ Rotate head assembly (26) until holes for pivot pins (56) line up.
2. Two pivot pins (56).
a. Lubricate with lithium grease.
b. Press pins until firmly seated two places.
c. Stake pins (56) three locations two places.
3. Do step 2, under "INSTALL OR CONNECT," refer to TILT SPRING.
4. Do steps 2 through 4, under "INSTALL OR CONNECT," refer to LOCK MODULE ASM.
5. Do steps 1 through 6, under "INSTALL OR CONNECT," refer to UPPER TILT HEAD COMPONENTS.
6. Do steps 1 through 6, under "INSTALL OR CONNECT," refer to LINEAR SHIFT ASM (REMOVAL) (Column shift only), and adjust and inspect in this section.
7. Do all steps, under "INSTALL OR CONNECT," refer to SIR COIL ASSEMBLY.
