Linear Shift Assembly - Disassemble - Column Shift

This text also includes the following components:
Ball and Actuator Assembly
Shift Lever Clevis
Park Lock Cable Assembly
G/S Lever Assembly Suport Bracket (c/s only)


^ Tools Required:
- J 41352 Modular Column Holding Fixture
- J 41396 Park Lock Cable Pliers
- Or Equivalents

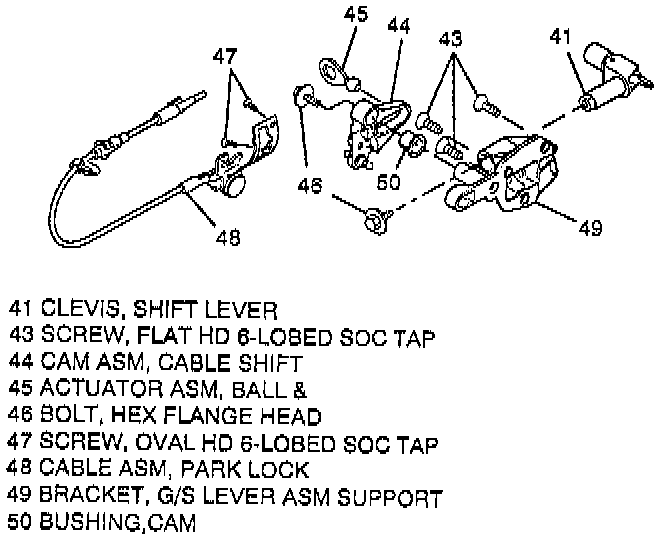

DISASSEMBLE
1. Do all steps under "REMOVE OR DISCONNECT," refer to LOWER SHROUD, UPPER SHROUD.





2. Hexagon flanged head bolt (46).
3. Ball & actuator assembly (45).








4. Pry off locking ring on park lock cable assembly (48).
^ Move park lock latch to gain access to lower oval head 6-lobed socket tap screw (47).
5. Two oval head 6-lobed socket tap screws (47) from shift gate.
6. Shift lever clevis (41).
a. Lift up on shift gate and rotate shift lever clevis (41).
b. Clevis (41) from gear shift lever assembly support bracket (49).
7. Park lock cable assembly (48) from support bracket (49). Remove retaining clip.
8. Pry actuator arm of Electrical BTSI actuator (61) from outer shift cable ball stud on cable shift cam assembly (44).
9. Pry transaxle shift cable from inner ball stud on cable shift cam assembly (44).
10. Hexagon flange head bolt (46).
11. Cable shift cam assembly (44).
12. Cam bushing (50) from cable shift cam assembly (44).
13. Three flat head 6-lobed socket tap screws (43).
14. Gearshift lever assembly support bracket (49).

ASSEMBLE
1. Lubricate all moving parts of assembly with synthetic grease.
2. Gearshift lever assembly support bracket (49).
3. Three flat head 6-lobed socket tap screws (43).
^ Tighten screws (43) to 10 Nm (89 lb in).
4. Insert cam bushing (50) into cable shift cam assembly (44).
5. Cable shift cam assembly (44).
6. Hexagon flange head bolt (46).
^ Tighten bolt (46) to 18.0 Nm (159 lb in).
7. Transaxle shift cable to inner ball stud on cable shift cam assembly (44).
8. Actuator arm of Electrical BTSI actuator (61) to outer shift cable ball stud on cable shift cam assembly (44).
9. Park lock cable assembly (48) to support bracket (49). Insert retaining clip.
10. Shift lever clevis (41) and shift gate to support bracket (49).
a. Position shift gate to end of clevis (41) lever.
b. Rotate clevis (41) and shift gate into position.
c. Push against shift lever spring tension to align shift gate holes with support bracket (49) holes.
11. Two oval head 6-lobed socket tap screws (47).
^ Tighten screws (47) to 6.5 Nm (58 lb in).
12. Ball & actuator assembly (45).
13. Hexagon flanged head bolt (46).
^ Tighten bolt (46) to 18.0 Nm (159 lb in).
14. Park lock cable assembly (48) to lock module assembly (15).
^ Lock cylinder should be in "OFF-LOCK" position and gear shift in "PARK" position.
^ Locking tab on end of cable (48) to slot in lock module assembly (15).
15. Do Adjust and Inspect, under "INSTALL OR CONNECT," refer to LINEAR SHIFT ASM (REMOVAL).
16. Do all steps, under "INSTALL OR CONNECT," refer to LOWER SHROUD, UPPER SHROUD.
